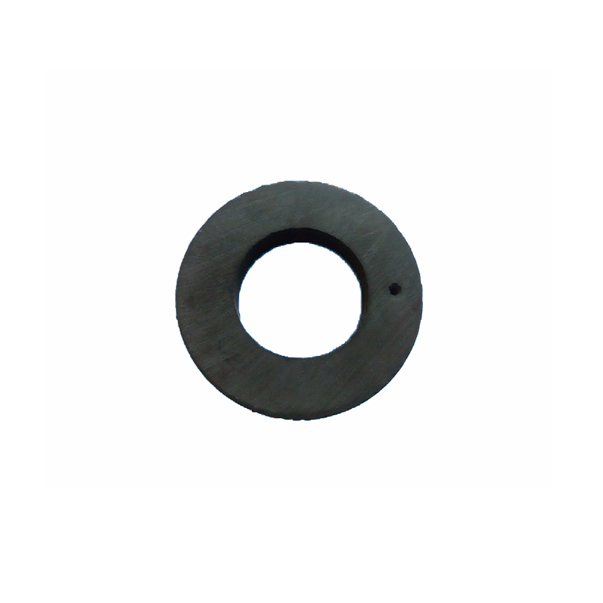

Axial 6 pole hard ferrite ring magnet 30x16x5mm

Product name: 6-pole ferrite ring magnet Magnetizing Direction: AxialThere are also 30x18x5mm and D30xd16x3mm that are close to this specification. Customers from all over the world are welcome to look for samples and prices.
Products Inquiry

PRODUCT INFORMATION

Product name: 6-pole ferrite ring magnet

Magnetizing Direction: Axial

Material: Sintered Ferrite

Magnet size: outer diameter 30mm, inner diameter 16mm, thickness 5mm

Number of magnetized poles: 6 poles (4 poles can also be magnetized)

Magnetic Field Strength: 1300gs

Application: DVD movement

Place of Origin: Mainland China


There are also 30x18x5mm and D30xd16x3mm that are close to this specification. Customers from all over the world are welcome to look for samples and prices.
