24 pole ring ferrite magnet 750 gauss [price advantage]

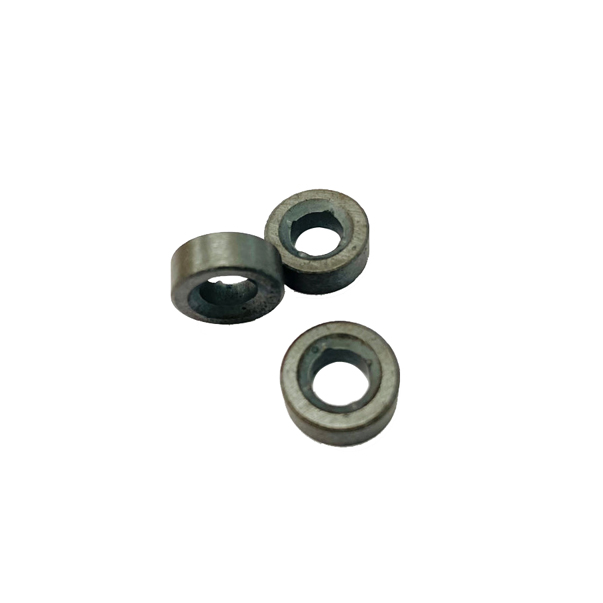

This is a radial 24-pole magnetized ferrite ring magnet with a surface magnetic field strength of about 750gs, suitable for motor governors, sensors, and similar multi-pole ferrite rotor magnet specifications. We have many specifications, welcome to consult your requirements size of.
Products Inquiry

PRODUCT INFORMATION

This is a radial 24-pole magnetized ferrite ring magnet with a surface magnetic field strength of about 750gs, suitable for motor governors, sensors, and similar multi-pole ferrite rotor magnet specifications. We have many specifications, welcome to consult your requirements size of.


The multi-pole magnetic ring is to use a special magnetizer to magnetize the magnetic ring with the required number of pole pairs on the hard magnetic ring material. The magnetization effect is related to the magnetic ring material used and the performance of the magnetizer. The size of the magnetic energy product and the hysteresis attenuation are related to the above conditions.


Note: We are a manufacturer of motor magnets in China, accepting customization of multi-pole magnets (size performance).
