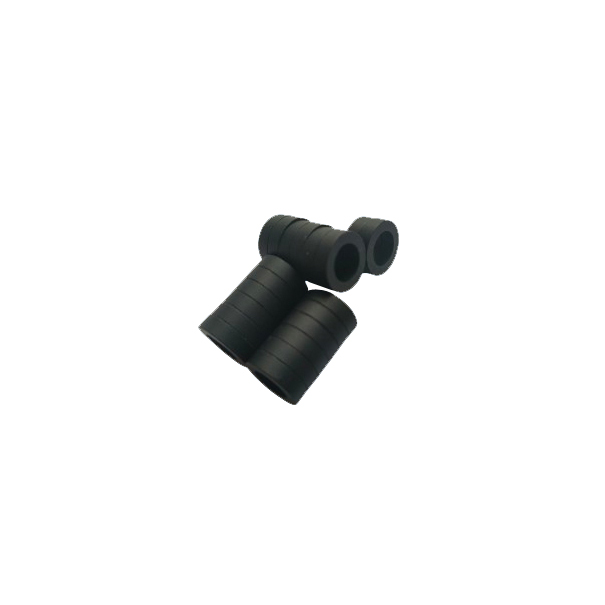

Looking for bonded NdFeB magnet ring samples, need a quote or custom bonded multi-pole magnet ring can contact us Karachi magnet manufacturers, we are professional, more molds, you are now seeing the specifications of this magnet ring OD 13mm, bore diameter 8mm, thickness of 3.5mm, the surface of the black epoxy, due to the reason of the photo may look like a ferrite, the actual bonded ring magnets, suitable for a variety of types of motor, sensor, and electric appliances.

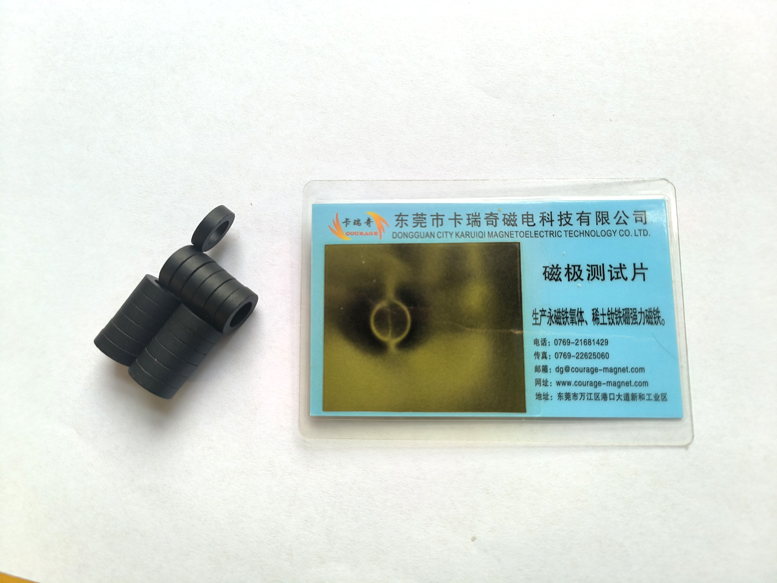

Radial 2 pole bonded ndfeb small magnet ring 13x8x3.5mm sample and pole distribution display;
Approximate size;
