This is a large-sized multi-pole ring magnet, which was originally shot by Chinese magnet supplier Courage Xiaofu. If you see it in other websites, it is completely copied from us. The size of this magnet is 70.2mm in outer diameter, 51.83mm in inner diameter, and 28mm in thickness (height). The largest magnetic surface is on the outer side of the ring, It has eight magnetic poles, which is mainly used for permanent magnet DC motor. If you need samples, you can contact our company to provide.

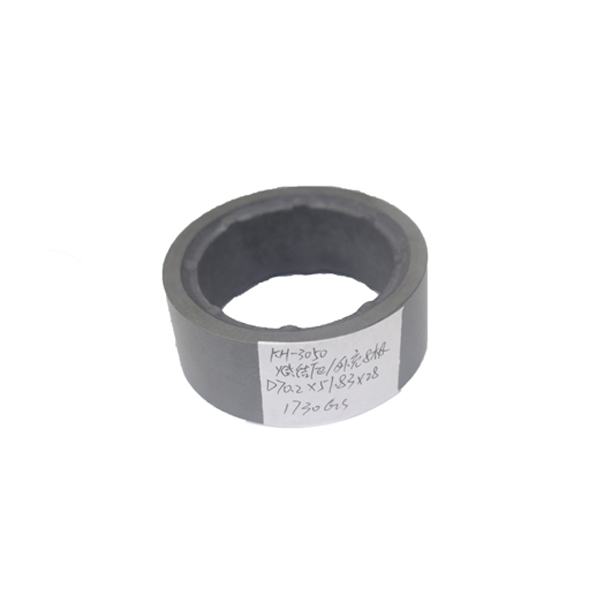

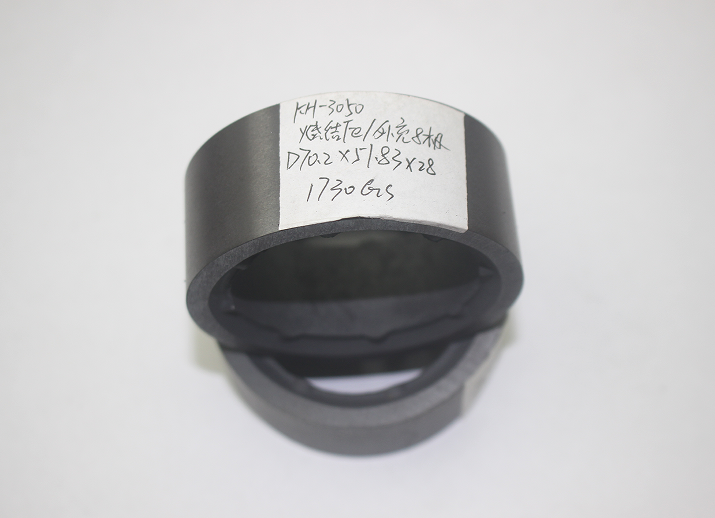

Actual picture of 8 pole sintered ferrite ring D70 x 52 x 28 mm sample；
8 pole high performance ferrite rings of similar size;
China high performance sintered ferrite 8 poles ring 1700 gauss
