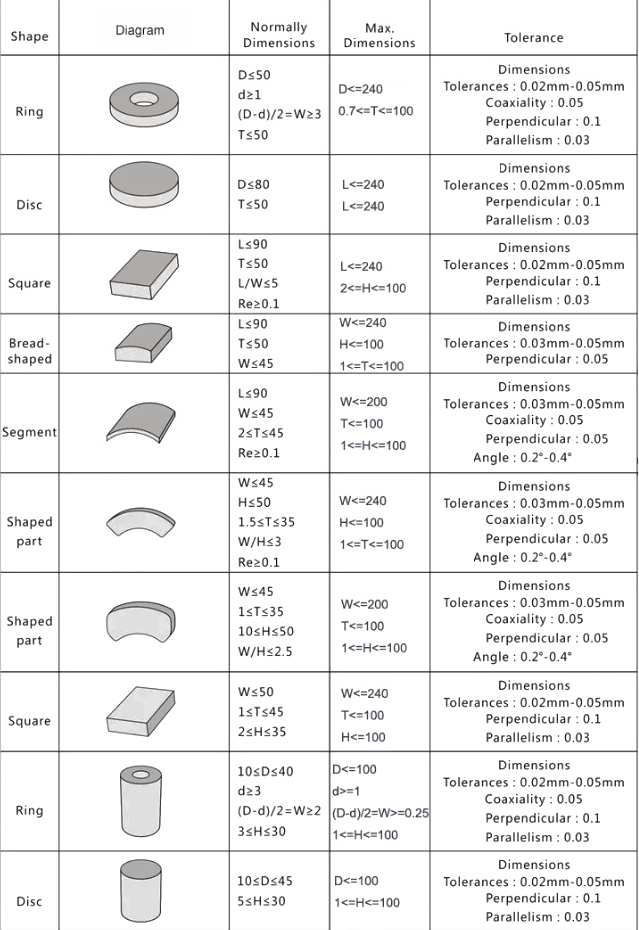

The size tolerance of normal neodymium magnet squares, discs, and cylindrical magnets is ±0.05MM, and some customers' less demanding drawings are marked with ±0.1, and for some magnet products that require high precision, we can control it to ±0.03MM or even higher .
The normal dimensional tolerance of cutting permanent ferrite magnets is controlled within ±0.15MM. If the customer’s products are not strict, the magnet manufacturer will produce according to the tolerance of ±0.2MM, while the relatively strict cutting ferrite magnets use ferrite The production of the body cutting machine can be controlled to ±0.1MM to the maximum extent.
Molded ferrite: length tolerance is L ± [L x 2%], width is W ± [W x 2%], thickness is ±0.1 (unit mm)
