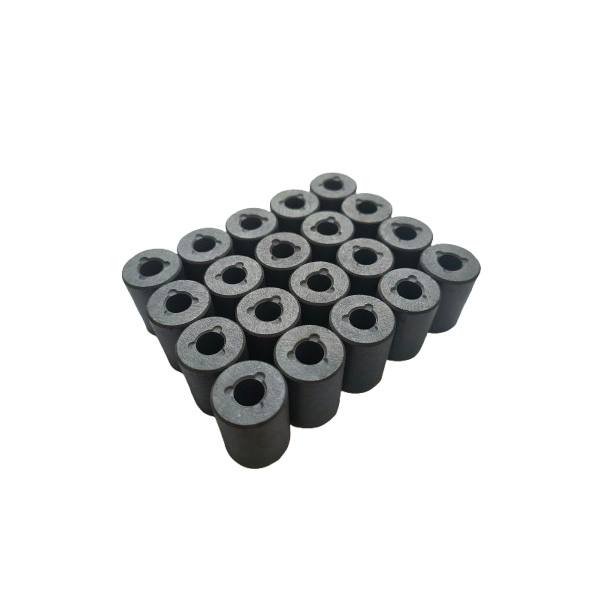

The sample is a high-performance ferrite rotor magnet with a radial 3-pair pole configuration (6 poles), measuring 20mm in outer diameter, center bore diameter of 8mm, and height of 27mm. Featuring a radially multipolar magnetization structure with 6 poles evenly distributed circumferentially, the surface magnetic flux density reaches approximately 1800 Gauss. This represents a high magnetic performance level within the ferrite material system, balancing magnetic force output with cost control. Customization options are available for adjusting the number of pole pairs, dimensional tolerances, or magnetic performance parameters (e.g., Gauss).

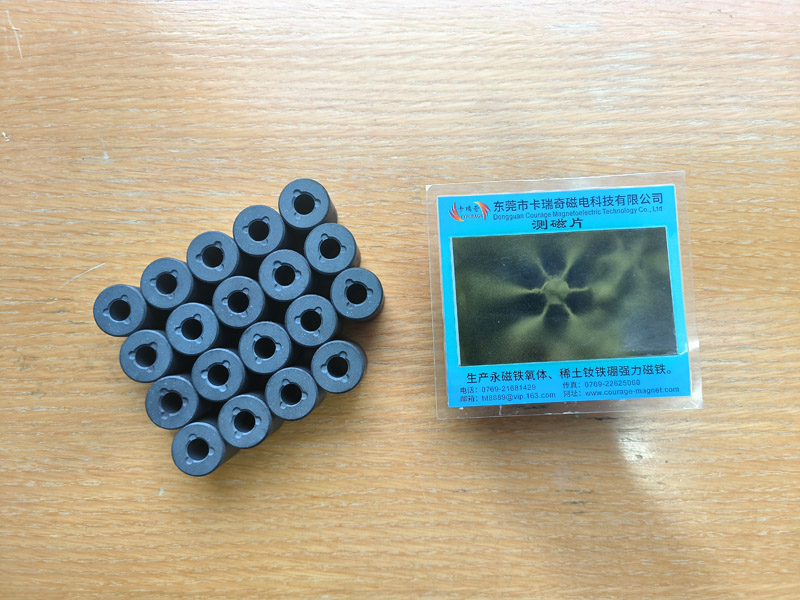

Radial 6-pole sintered ferrite radial rotor magnetic ring 20x8x27mm sample image
Similar samples;
Radial 12 pole ferrite rotor magnet ring 18 x 10 x 17.5 mm
Radially magnetized 6 pole hollow cylinder rotor ring 12x8x20mm
