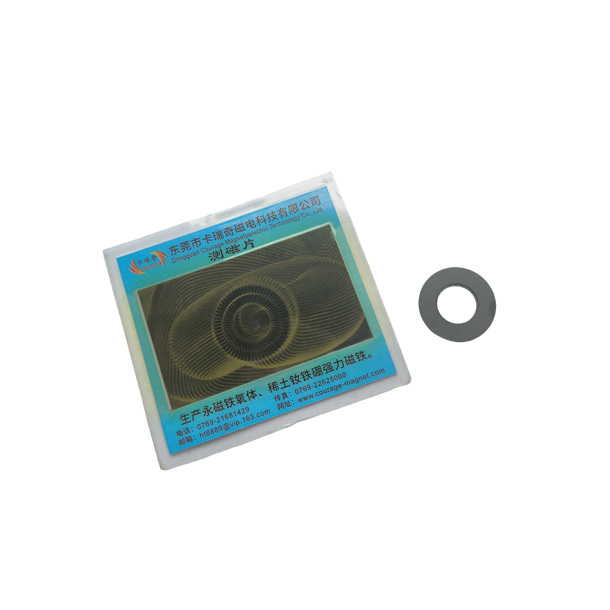

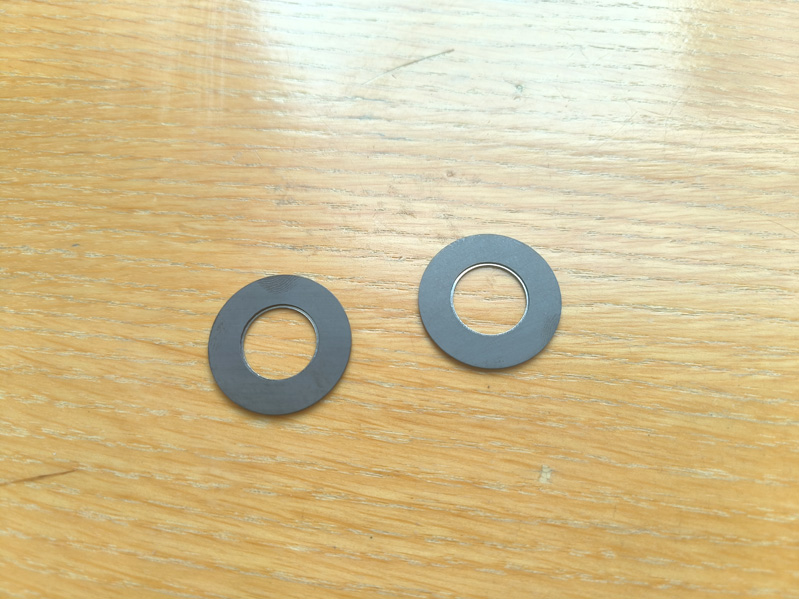

Encoder magnetic disk ring 62 64 poles 29 x 15 x 1.1 mm

This product is a magnetic encoder disk designed specifically for encoders. It features a ring-shaped design made of rubber-ferrite material with a dual-ring magnetization structure, available in 64-pole and 62-pole configurations. The specifications are: outer diameter 29 mm, inner diameter 15 mm, and thickness 1.1 mm. With its compact overall dimensions, it is suitable for space-constrained micro, small, and medium-sized rotary detection systems. It can simultaneously output high-resolution position signals and auxiliary calibration signals, significantly enhancing the encoder’s angular resolution and anti-interference performance. It is particularly suitable for use in absolute or incremental magnetic encoder systems.
