This product is a radial multi-pole ferrite rotor magnetic ring, photographed by Xiao Fu, a Courage magnet manufacturer in China. The magnet has 12 magnetic poles, 6 N poles and 6 S poles, and the magnetic field intensity can reach 1700 Gauss. The specific size of the magnet is 18mm outer diameter, 10mm aperture and 17.5mm height, and it is mainly used for permanent magnet DC motor. If you need more information, please send us an enquiry or communicate through WhatsApp on the right.

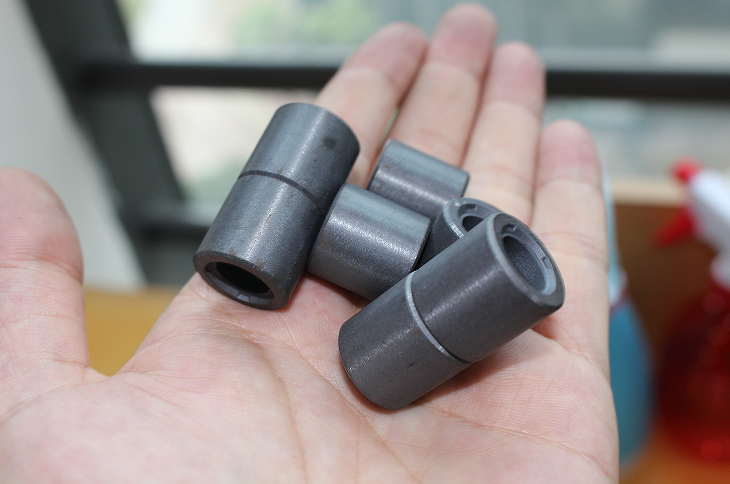

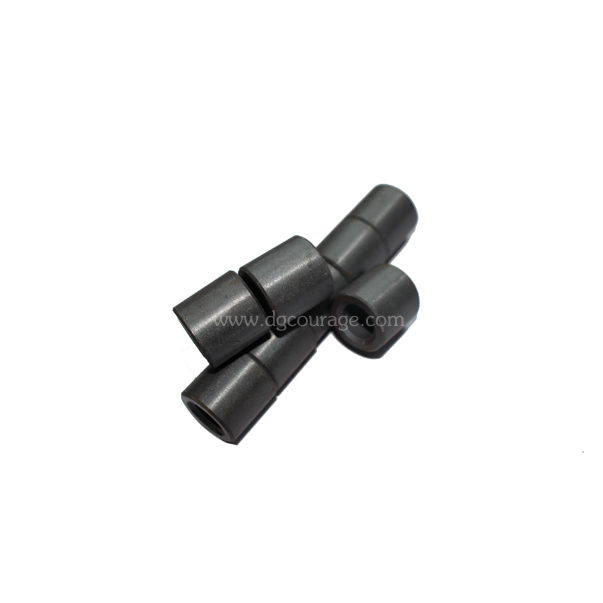

18 x 10 x 17.5 mm radial ferrite samples real pictures；
Recommend the 12 pole ferrite ring magnet that has been uploaded for you;
