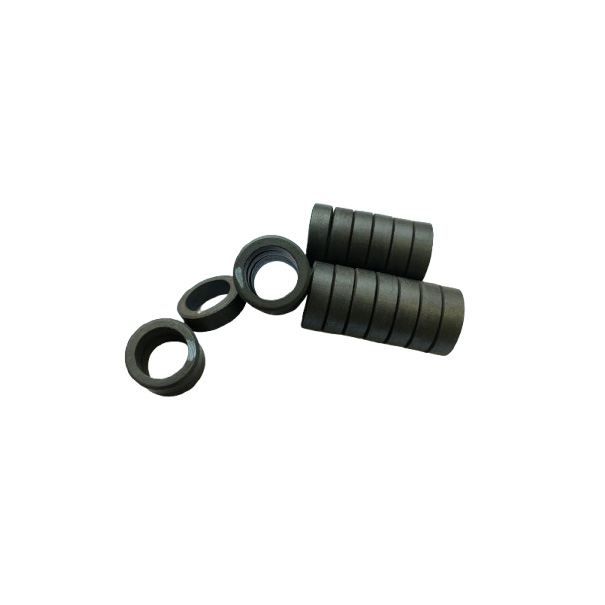

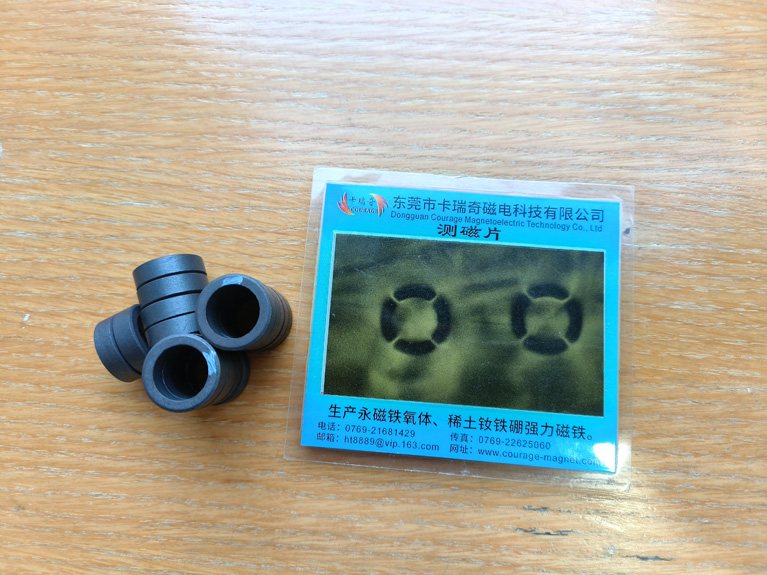

This is a 20mm outer diameter, 6mm thick same-pole ferrite ring magnet manufactured from Y10 grade material. It offers stable magnetic properties and excellent temperature resistance, making it suitable for various sensing and motor applications. The ring features a flat 4-pole magnetization pattern with uniform pole distribution. Its 13.7mm inner bore size facilitates assembly into shaft structures or embedded positioning systems. The product features white polarity markings for quick identification of the weak magnetic surface or installation orientation, reducing assembly errors.
