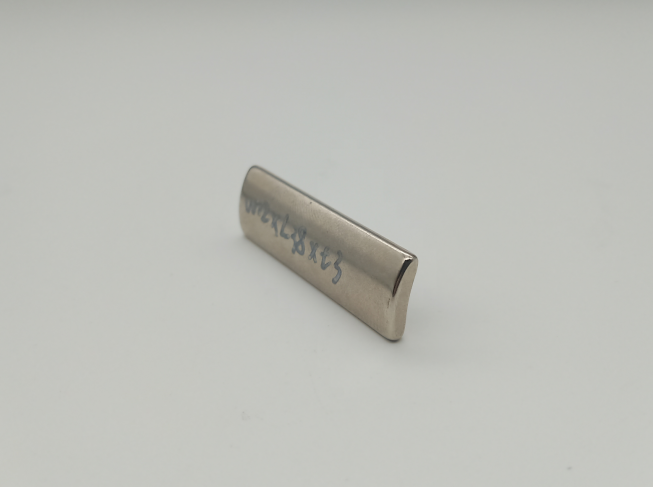

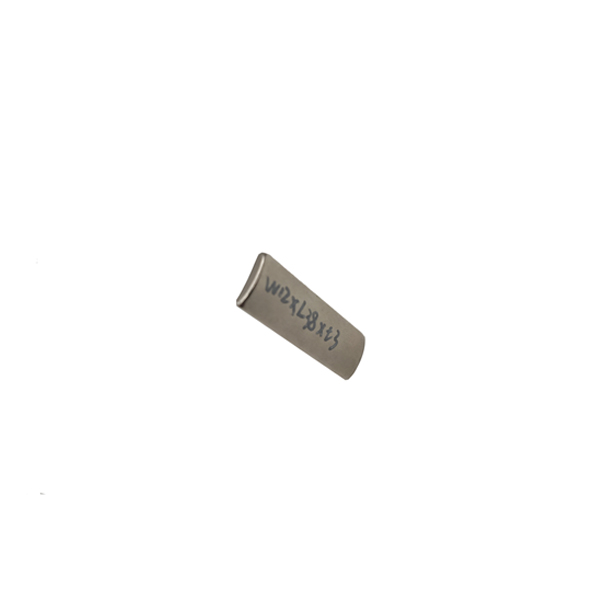

This is a relatively narrow (small width size) neodymium arc magnets, string width 12mm, shaft length 38mm, thickness is 3mm, nickel plated surface, radial magnetization, magnetic strength of more than 2000 Gauss, mainly used in micromotor, permanent magnet DC motor, need high temperature resistance above 100℃, our professional motor magnet direct sales manufacturers, for strong arc magnet, Multipole magnets has a great price advantage, do not believe you can send inquiries to compare.
Rare earth neodymium arc magnet W12xL38xT3mm
