For the new people who just contact the magnet industry, the curved magnet must be very strange. What does each part of the curved segment magnet represent? What is the correct written form of tile? Mainly used in what products, today, courage magnet manufacturers (in China) Xiaobian to talk to you.
Introduction to arc segment magnet；
Curved magnet can be seen as a part of a ring magnet, mainly used in a variety of DC motors, according to the different motor commonly used segment magnet materials are rare earth neodymium and ferrite, usually need multiple pieces, even NS pole, different people call it different, such as curved magnet, bending magnet, wedge magnet, motor arc magnet, etc.
Specification diagram of curved bending magnet;

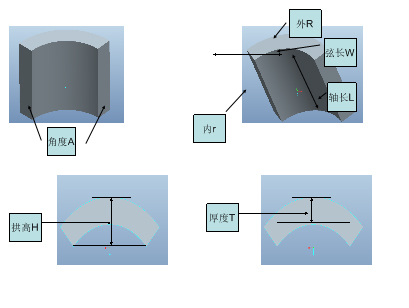

From the above curved magnet size diagram, we can clearly know which part of the arc curved magnet is called what? Where is it?

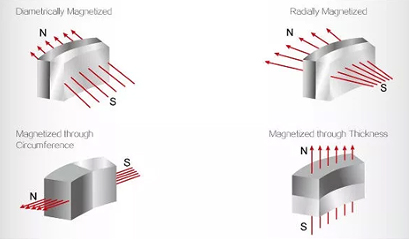

Several magnetization modes of arc section magnet;
Main parameters of arc magnet:
It is mainly about the size data, magnetic property data, tolerance, temperature resistance and magnetizing method that we will confirm with you. A drawing is the best, It is usually paired magnetization..
How is the arc section magnet specification written?
Magnetic tile format: R outer arc * r inner arc * W chord width * L axis length * H arch height * T wall thickness
The above is a little knowledge about arc magnet introduction, if you are interested in this kind of motor arc magnet, please contact our company for quotation, provide samples, we can provide neodymium arc magnets and ceramic ferrite arc magnet.
