This product is a rare earth neodymium arc segmented magnet, mainly used for motors, the size is not fixed, it is a customized product, welcome customers from the United States, Italy, India, Malaysia, Russia, Spain, Canada, South Korea, the Netherlands and other places to come to the drawing consultation .

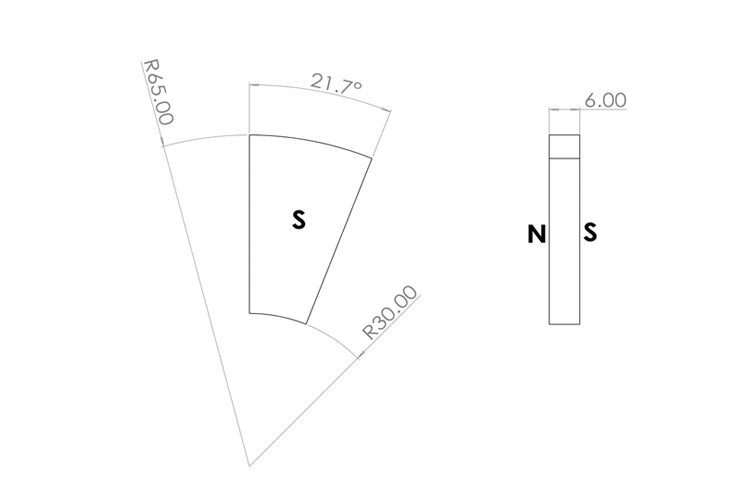

Drawing reference;
Customized services we can provide;
1. Wide range of custom material grades: N/M/H/SH/UH/EH/AH grades.
2. There are many types of customized precision and fine special-shaped magnets: tile-shaped, u-shaped, circular, countersunk, square with holes, slotted, beveled magnets, convex, concave, oval, etc. Headphone magnet, connector magnet, TWS magnet, sensor magnet, wireless charging magnet.
3. Customized packaging: conventionally packaged in vacuum plastic bags, which can be degaussed; it can also be packaged according to your requirements.
4. Labeling: print logo or cross-line logo according to your needs.
5. Customized coating: nickel plating, chemical nickel plating, blue and white zinc plating, color zinc plating, epoxy plating, black nickel plating, gold plating, silver plating, copper plating, phosphating.
6. Product testing: drop test, sweat test, salt spray test, pull/suction test, environmental protection test, film thickness test, paper tape friction test, reliability test, etc.
You can go to the Neodymium Segmented Bending Magnet section to choose the shape you want.
