Is there specific orientation for the magnet in a Hall sensor?

When people first encounter Hall sensors, many wonder whether magnets have a ‘front’ and ‘back’—should they be positioned with the ‘front’ or the ‘back’ facing the sensor? Let’s take a closer look.

In fact, they do. The ‘front’ and ‘back’ of a magnet refer to what we commonly call the north pole and south pole. Hall sensors operate by detecting changes in the magnetic field between these two different poles, so the orientation of the magnet is crucial.

For example, some Hall sensors only respond to the N-pole, whilst others are sensitive to the S-pole; still others require alternating N- and S-poles to function correctly. If the magnet is fitted the wrong way round, the device may not receive a signal or may even fail to start up properly.

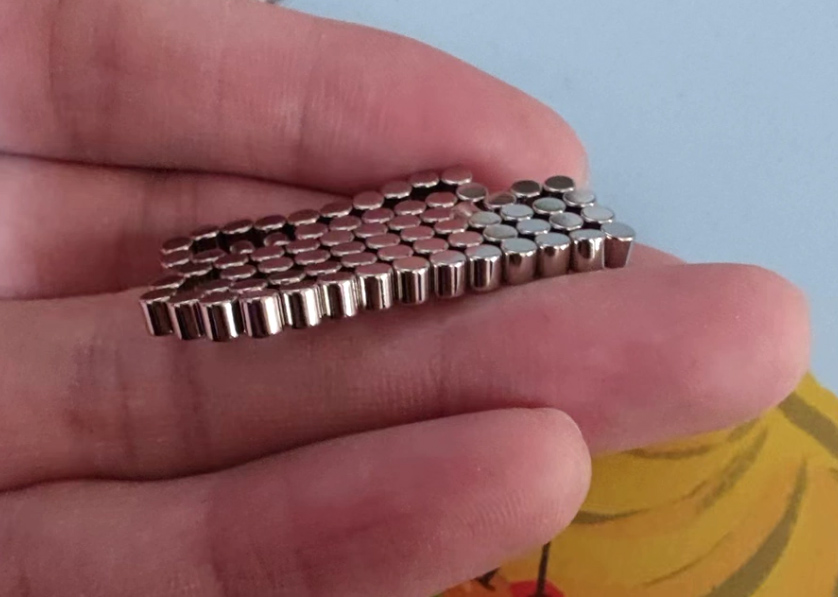

Radial cylindrical neodymium magnets

In practical applications, Hall sensors are frequently used in conjunction with magnets made from a variety of materials, such as neodymium-iron-boron magnets, ferrite magnets and composite injection-moulded magnets. In products such as fans, motors, encoders and automotive sensors, multi-pole magnetic rings are commonly used—for example, 4-pole, 8-pole and 12-pole rings—with the poles arranged alternately as one N-pole followed by one S-pole.

The above explains whether Hall sensor magnets have a specific orientation. Should your company require Hall sensor magnets, please feel free to contact our website customer service team for a quotation and samples.
