This is a 6-pole ring magnet made of injection molded ferrite, with an outer diameter of 9.5mm, an inner hole of 1mm, a thickness of 2mm, single-sided 6-pole magnetization, 3 N poles and 3 S poles. It is mainly used for Hall encoder. We have molds. Customers in need are welcome to consult prices and samples.

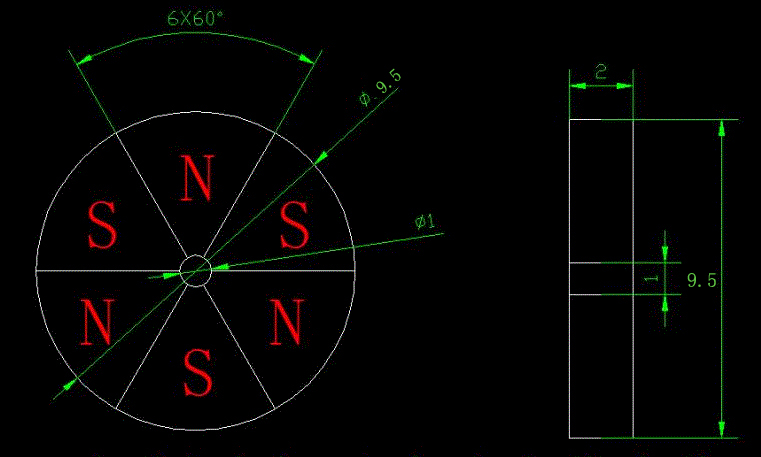

Hall encoder ring magnet 9.5 x 1 x 2 mm drawing
Relevant 9.5mm outer diameter injection magnet;
Ferrite grade, sintered ferrite magnetic property parameter table
NdFeB magnet grade, Sintered neodymium magnet performance grade parameter table
Neodymium(Ndfeb) Magnet Material Safety Data Sheet
Sintered Ferrite Material Safety Data Sheet Pdf
Magnetic properties grade parameters of smco rare earth magnets
Product Name: Radial Multipole Magnet for Drive Motor，Product Specifications: Customized. [The outer diameter of this magnet product is 9mm]，Magnetizing direction: radially charging，Number of magnetizing poles: 10 poles，Coating: Black Epoxy，Magnetic force size: about 1100gs...
The key component of the magnetic pump is the magnetic coupling, which is mainly composed of inner and outer magnets, even if two are used. At present, the inner and outer magnets are mainly made of NdFeB or rare earth cobalt, and then there is ferrite. This sample It is also suitable for magnetic drive pumps, with radial 6-pole magnetization, and many customers choose 6 or 8 pcs neodymium arc magnets....
This product is a gas pipe magnet, made of ferrite, radial four-pole magnetization, product specifications are d9.7*4.7*12.4mm, d19.4*12.5*12.4, matching, customers who need samples send us an inquiry ....
This magnet is a ring-shaped neodymium magnet with radial 10 poles. The material is bonded NdFeB, the inner circle is magnetized with 10 poles, and the strong magnetic surface is inner circle. The size of the magnet is 32.6mm in outer diameter, 28.6mm in inner diameter, and 6mm in height....
This product is a ring-shaped ferrite magnet with an outer diameter of 20mm, an inner diameter of 10mm, and a thickness of 3mm. There is no coating on the outside. The magnetizing method is axial/planar 4 poles and the surface magnetic field strength is about 980gs....
This is a ring magnet applied to a push rod motor. The material is injection-molded ferrite. The specific dimensions are 22mm outer diameter, 7mm inner diameter, 4mm thickness, and 4-pole magnetization. If your product is suitable for this magnet, please contact us ....
This sample is a speed measurement magnet, an AC geared motor multi-pole ring magnet, made of sintered ferrite, the magnetization method is radial 24 poles, the magnet size is 22.5mm in outer diameter, 12mm in inner diameter, and 6.5mm in thickness. Qi magnet manufacturers provide,...
You are now viewing this is a bonded molded NdFeB magnet, ring shape, ring OD 38mm, hole 29mm, height 20mm, surface black epoxy coating, the magnetization is through the radial multi-pole magnetization, there are 10 poles, 5 N-pole, 5 S-pole....
