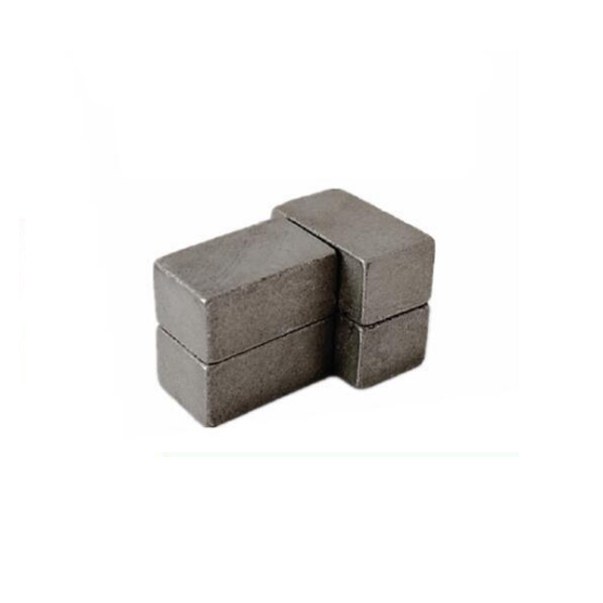

Uncoated Samarium Cobalt Block Magnet【Picture Price Sale】

Normal size range of samarium cobalt block magnet: l = 1-130mm, w = 0.5-130mm, t = 0.3-90mm. Maximum square size: rectangle: L130 × W100 × T50mm, square: L130 × W130 × T40mm, longest magnetization direction: 100mm. Minimum square size: L1 × W 0.5 × T 0.3mm。
Products Inquiry

PRODUCT INFORMATION

Product Name: uncoated rare earth samarium cobalt magnet

Operating temperature: 350 ℃

Dimensions: Customizing

Density: 8.2g/cm3

Place of shipment: Dongguan, China

Normal size range of samarium cobalt block magnet: l = 1-130mm, w = 0.5-130mm, t = 0.3-90mm. Maximum square size: rectangle: L130 × W100 × T50mm, square: L130 × W130 × T40mm, longest magnetization direction: 100mm. Minimum square size: L1 × W 0.5 × T 0.3mm。


Note: Generally speaking, for a square, if you want a relatively large size, other sizes must be reduced accordingly; If you need two larger sizes, too thin thickness cannot be satisfied, because it is easy to fracture due to the great brittleness of SmCo during assembly. Other larger sizes and specifications can be realized through better schemes. For more information, please consult relevant technical or sales personnel.


Samarium cobalt rare earth magnets of other shapes and sizes;

Arc Smco Magnet

Counterbore Samarium Cobalt Rare Earth Magnet

Smco micro magnets [sales price supply]

Tags:
DATA DOWNLOAD

Ferrite grade, sintered ferrite magnetic property parameter table

NdFeB magnet grade, Sintered neodymium magnet performance grade parameter table

Neodymium(Ndfeb) Magnet Material Safety Data Sheet

Sintered Ferrite Material Safety Data Sheet Pdf

Magnetic properties grade parameters of smco rare earth magnets

RECOMMEND SIMILAR PRODUCTS

Arc Samarium Cobalt Permanent Magnets with Grooves

Arc samarium cobalt magnets are mainly used in electric motors, generators, sensors, medical equipment, aerospace, computer hard disks, automobiles, electronic equipment and other fields. They can be used to manufacture electromagnetic devices of various shapes and sizes, such as motors, generators, solenoid valves, electromagnets, sensors, etc....

SmCo Countersunk Ring Magnet 20 X 5 MM

If you need to customize samarium cobalt magnet, please contact our customer service to explain the size, brand, quantity, electroplating coating, tolerance requirements, magnetization direction, etc. We will produce according to your requirements....

Heat resistant magnetic sheet disc 8mm x 3mm

The product is heat-resistant circular disc magnetic steel, the specification and size is 8mm in diameter, 3mm in thickness, standard tolerance, no plating on the surface (it is OK to plating if you want), and it size can be customized, Welcome to inquire about the size you want....

Small size samarium cobalt circular magnet D2 x 2 mm

This is a small samarium cobalt magnet, made of rare earth samarium cobalt magnetic material, the size is 2mm in diameter and 2mm in thickness, the material is Sm2Co17, the grade is 26, and it is axially magnetized, so the N pole and S pole are on the plane, The surface is uncoated and is mainly used in high temperature industrial environments....

Smco micro magnets [sales price supply]

Samarium-cobalt magnets are also called samarium magnets by many customers. They are divided into sintering and bonding. Our company only supplies sintered samarium-cobalt magnets. The grades are SmCo5 and Sm2Co17. The magnetic properties are weaker than neodymium iron boron magnets, stronger than ferrite and alnico magnets. It is the most expensive of these four types of magnets. The magnetic properties are very stable, with strong corrosion and oxidation resistance....

Hollow Cylindrical Samarium Cobalt Magnet

This product is a hollow cylindrical magnet, a cylindrical holed samarium cobalt magnet, and it is also a rare earth magnet. Compared with a neodymium hollow cylindrical magnet, it is more resistant to high temperature, so the application fields are different, which is also their biggest difference....

Counterbore Samarium Cobalt Rare Earth Magnet

This is a samarium-cobalt round magnet with counterbore. The size is 15mm in outer diameter, 5mm in thickness, magnetized in the thickness direction, and no other coating on the surface. Customers who need our quotation for you are welcome to consult and can be customized....

Samarium Cobalt Disc magnet 7.5mm x 1.5mm

This is a round samarium cobalt magnet with a diameter of 7.5mm and a thickness of 1.5mm. The product performance is smco (2:17), no coating is required, and it can be used in a high temperature environment. The maximum working temperature can reach 350 ℃, which is very suitable for manufacturing high performance permanent magnet motor, motor. Instruments, detectors...
