Samarium cobalt circular disc magnet for fixture 10x3mm

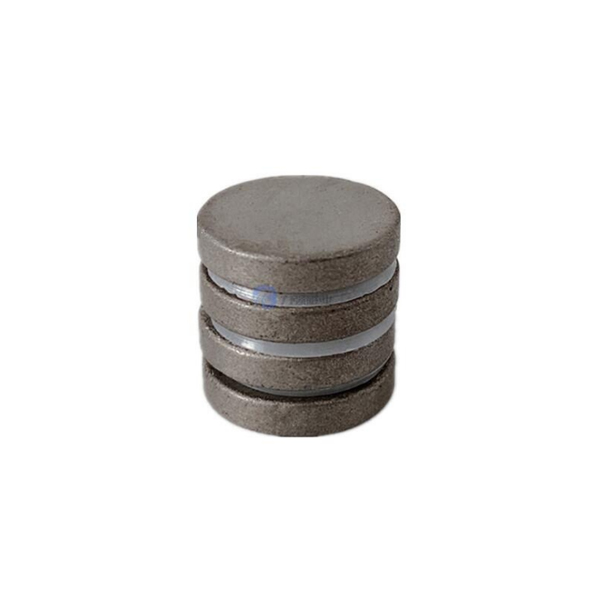

This product is a rare earth samarium cobalt magnet with a diameter of 10mm and a thickness of 3mm. The surface is uncoated and looks a bit like a ceramic ferrite magnet. It is mainly used for jigs, fixtures, and high-temperature ovens.
Products Inquiry

PRODUCT INFORMATION

This product is a rare earth samarium cobalt magnet with a diameter of 10mm and a thickness of 3mm. The surface is uncoated and looks a bit like a ceramic ferrite magnet. It is mainly used for jigs, fixtures, and high-temperature ovens.

Normal size range of round samarium cobalt magnet: D=1-130mm, T=0.3-120mm

Maximum cylinder size: D130×T40mm, D80×T120mm

Minimum cylinder size: D1×T0.3mm

Note: For a cylinder, a very large outer diameter and too thin thickness cannot be satisfied at the same time, because it will easily lead to fracture due to the huge brittleness of SmCo during assembly. Larger diameters and heights than the above can also be achieved in a more optimal way, please consult sales for details.


Samarium cobalt magnets of other shapes;

SmCo Countersunk Ring Magnet 20 X 5 MM

Arc Samarium Cobalt Permanent Magnets with Grooves
