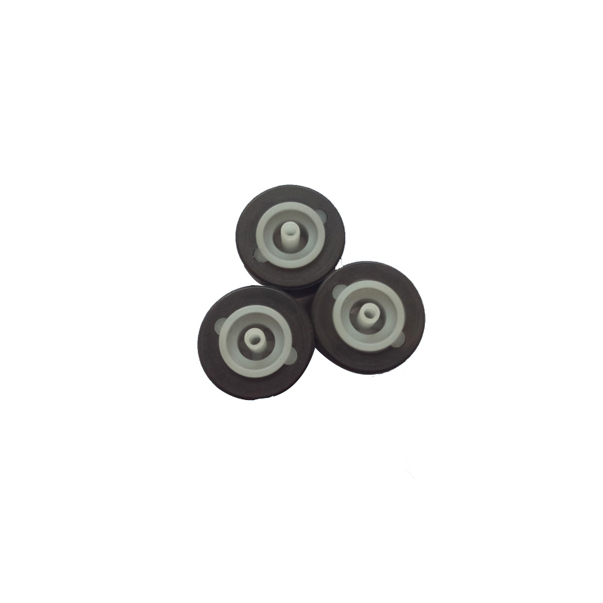

Product Name: Injection Molded Magneto Radial 8 Pole Externally Filled Magnetic Ring
Magnet specification: customized according to customer drawings or samples
Surface treatment: None
Brand: Courage Magnet
Production cycle: negotiation.
Applications: Encoders, Hall Induction, Motors, Sensors
Injection Ferrite Magnet Properties；
It is a new kind of composite permanent magnetic material with the features of flexible shaping, precision dimension, adjustable magnetic properties, fine coherence, composite molding, elastic magnetization and high mechanical strength.
Low cost, widely used in many different applications ,stable magnetic property with strong demagnetization resistance capability. Good corrosion resistance capability, no coating. The injection bonded ferrite magnet is widely applied in core components and parts of micro machine, location sensor, buzzer, contactless distributor For automotive and home appliance industry.
Welcome customers from all over the world to provide magnet sizes, drawings, inquiries, samples, and molds can be customized.
Magnets of other specifications and shapes of the same material;
Ferrite grade, sintered ferrite magnetic property parameter table
NdFeB magnet grade, Sintered neodymium magnet performance grade parameter table
Neodymium(Ndfeb) Magnet Material Safety Data Sheet
Sintered Ferrite Material Safety Data Sheet Pdf
Magnetic properties grade parameters of smco rare earth magnets
This magnet is a ring-shaped neodymium magnet with radial 10 poles. The material is bonded NdFeB, the inner circle is magnetized with 10 poles, and the strong magnetic surface is inner circle. The size of the magnet is 32.6mm in outer diameter, 28.6mm in inner diameter, and 6mm in height....
This product is a ring-shaped ferrite magnet with an outer diameter of 20mm, an inner diameter of 10mm, and a thickness of 3mm. There is no coating on the outside. The magnetizing method is axial/planar 4 poles and the surface magnetic field strength is about 980gs....
This is a ring magnet applied to a push rod motor. The material is injection-molded ferrite. The specific dimensions are 22mm outer diameter, 7mm inner diameter, 4mm thickness, and 4-pole magnetization. If your product is suitable for this magnet, please contact us ....
This sample is a speed measurement magnet, an AC geared motor multi-pole ring magnet, made of sintered ferrite, the magnetization method is radial 24 poles, the magnet size is 22.5mm in outer diameter, 12mm in inner diameter, and 6.5mm in thickness. Qi magnet manufacturers provide,...
You are now viewing this is a bonded molded NdFeB magnet, ring shape, ring OD 38mm, hole 29mm, height 20mm, surface black epoxy coating, the magnetization is through the radial multi-pole magnetization, there are 10 poles, 5 N-pole, 5 S-pole....
You are now seeing the specifications of this magnet ring OD 13mm, bore diameter 8mm, thickness of 3.5mm, the surface of the black epoxy, due to the reason of the photo may look like a ferrite, the actual bonded ring magnets, suitable for a variety of types of motor, sensor, and electric appliances....
This is a large-sized multi-pole ring magnet, which was originally shot by Chinese magnet supplier Courage Xiaofu. If you see it in other websites, it is completely copied from us. The size of this magnet is 70.2mm in outer diameter, 51.83mm in inner diameter, and 28mm in thickness (height). The largest magnetic surface is on the outer side of the ring...
This is a multi-pole neodymium magnetic ring made of bonded NdFeB material, hollow cylindrical with 6 poles, radial distribution of 3N3S, outer diameter 12mm, center hole 8mm, height 20mm, surface magnetic strength of about 1750 gauss...
