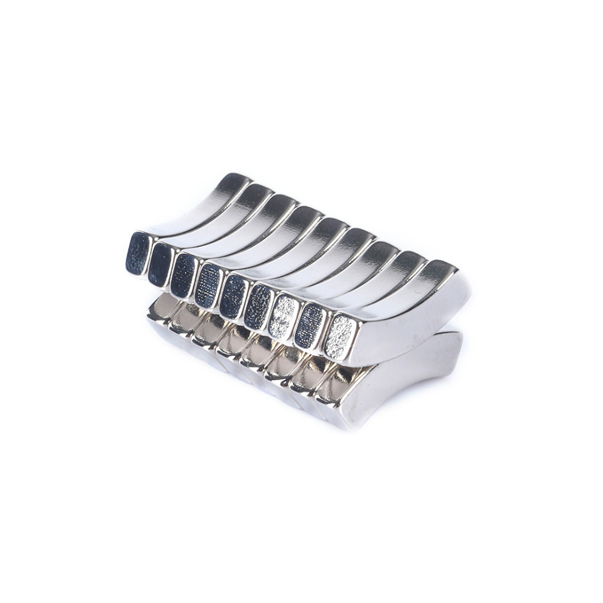

This product is an arc segment rare earth magnet for engine (motor). It is a custom-made magnet. It has the characteristics of strong magnetic force, high temperature resistance and not easy to corrosion. It is usually selected with the performance brand of grade H or above. Our company can process and customize it according to your specific size. You are welcome to provide drawings to you for quotation and samples.
When selecting arc magnets, customers need to provide information on coating, magnetization direction, tolerance, etc. in addition to dimensions :R outer diameter, R inner diameter,L length,H height, AND A Angle.
