The Role and Advantages of Neodymium Magnets in Magnetic Couplings

In the field of magnetic couplings, neodymium-iron-boron magnets serve as the core functional material and directly determine the upper limit of a product’s performance. Magnetic couplings essentially rely on magnetic fields to achieve contactless torque transmission, and neodymium-iron-boron magnets, with their ultra-high magnetic energy product (BHmax), have become the mainstream and irreplaceable material of choice. Compared to traditional mechanical couplings, magnetic couplings achieve power transmission through magnetic coupling, which not only features a more advanced structure but also places higher demands on magnet performance.

As for the role of the magnets, their primary function is to provide a stable and powerful magnetic coupling force. The inner and outer rotors form a closed magnetic circuit via the magnets, enabling synchronous transmission without physical contact.

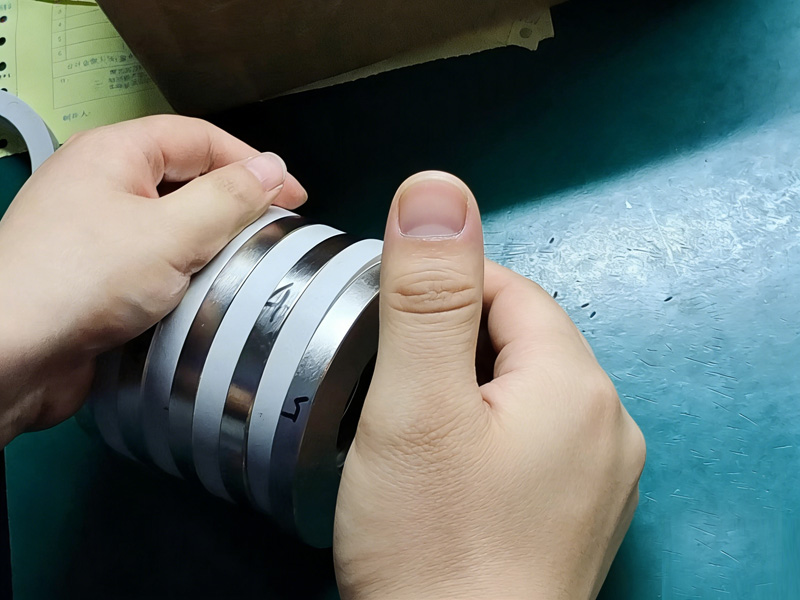

High-Power Neodymium Ring Magnets

One of the greatest advantages of neodymium-iron-boron magnets is their high power density. This enables magnetic couplings to be designed to be compact and lightweight, making them particularly suitable for space-constrained equipment such as magnetic drive pumps, precision transmission systems, and automated machinery.

Furthermore, neodymium magnets significantly enhance the reliability and safety of magnetic couplings. Since the transmission process is entirely contactless, there is no wear or risk of mechanical seal failure, enabling true “zero leakage”—a critical factor in industries such as chemicals, pharmaceuticals, and food processing.

In terms of application adaptation, magnet manufacturers can provide highly customized magnet solutions. For example, arc-shaped segment magnets or solid magnetic rings can be selected based on the coupling structure. Additionally, different temperature resistance grades (such as SH and UH) and protective coatings (nickel plating, epoxy, etc.) can be chosen according to operating conditions to ensure long-term stable operation of the magnets in high-temperature, humid, or corrosive environments.

Other commonly used magnets;

SmCo Ring Magnets
