Some people wonder: How do the rotors in household circulation pumps, aquarium pumps, and car cooling pumps—which are constantly submerged in water—manage to keep their magnets intact? How is this achieved?
To answer this, we first need to understand: Are ordinary magnets vulnerable to water?
The answer depends on the material.
The most common materials used in water pumps today are neodymium iron boron (bonded) and ferrite (sintered/injection-molded). Neodymium iron boron magnets possess exceptionally strong magnetic force, but they contain large amounts of reactive iron and rare earth elements. When exposed to water, they rapidly oxidize and crumble, causing their magnetic strength to plummet. So why do neodymium iron boron magnets in water pumps last for years without issue? The answer lies in encapsulation and isolation, preventing the magnets from ever coming into contact with water.

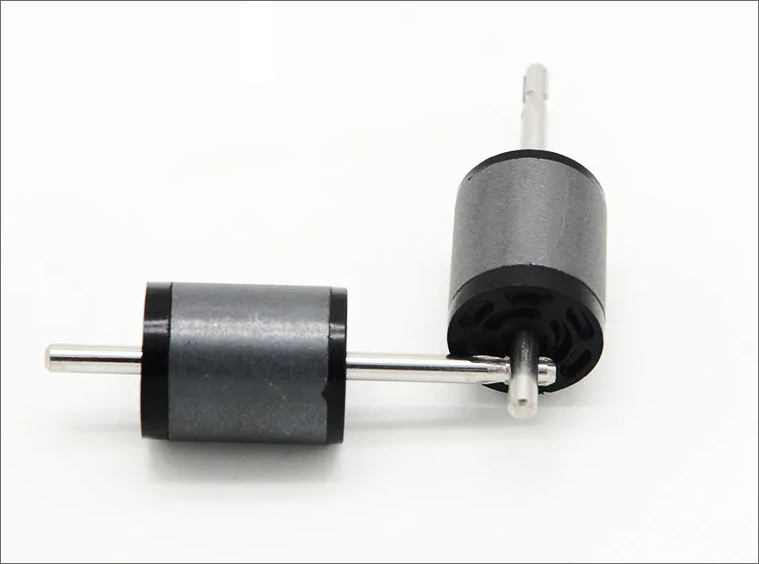

Illustration shows radial rotor magnet
Ferrite material is inherently water-resistant. Its chemical structure is an oxide ceramic, representing iron's most stable oxidation state. It cannot undergo further oxidation or corrosion, remaining rust-free even after years of immersion in freshwater. Therefore, in small water pumps with low magnetic strength requirements (such as aquarium pumps or small circulation pumps), ferrite magnets can exhibit excellent water resistance even without perfect encapsulation.
Therefore, the water pump rotor magnets are “waterproof” thanks to corrosion-resistant magnetic materials and encapsulation technology.
Relevant water pump rotor magnets;
2 pole radial cooler pump ferrite rotor ring magnet OD 9mm x 10mm
Neodymium round magnets with a diameter of 5mm and a thickness of 4mm are more commonly used. If you feel that the magnetic force is not enough, the performance level can be appropriately improved. Welcome to consult the price!...
Our company is a permanent magnet supplier from China. We are good at processing micro-precision magnets, high-performance magnets, special-shaped magnets, and multi-pole ring magnets. The quality is guaranteed and the price is not expensive. We look forward to customer consultation from all over the world....
The sample is an N52 high-performance ultra small hole radially sintered neodymium rotor magnet, with specifications of 2mm outer diameter, 0.9mm bore, and 4.5mm height....
This is a square neodymium magnet for earphones, the length and width are 5mm, the thickness is 2mm, the thickness is magnetized, the surface is galvanized, 1mm or other thickness can also be selected, non-high temperature grade, the maximum working temperature is less than 80 ℃...
The sample is a high-performance ferrite rotor magnet with a radial 3-pair pole configuration (6 poles), measuring 20mm in outer diameter, center bore diameter of 8mm, and height of 27mm. surface magnetic flux density reaches approximately 1800 Gauss....
This is a small-sized short bar shaped neodymium iron boron strong magnet with a specification of 1.5 × 1.5 × 10mm. It is made of N42 performance grade neodymium iron boron material and magnetized along the length direction (10 mm direction)....
This is a rare earth NdFeB strong magnet with a length of 30mm, a width of 20mm and a thickness of 10mm. Surface treatment is nickel-copper-nickel, and the thickness is 10mm. Magnetization direction is length direction....
This product is a small rare earth NdFeB magnet ring, with gold plated surface, N52 grade, the magnetization method is axial, the size is 5mm outer diameter, 2mm inner hole, 2mm height, and the tolerance can be ±0.02mm. Welcome to consult us for the price....
