N35 magnets are relatively common among neodymium magnets. There are many customers who choose N35 grades on the market. Why choose it? Today, the magnet supplier Courage Magnet will talk about the characteristics of N35 magnets.
The main reason why N35 NdFeB magnet is popular is that the magnetic force can meet the requirements and has high cost performance. The maximum magnetic energy product is about 35mgoe. The conversion between mgoe and Ka / m3 is 1mgoe = 8KA / m3, and the maximum magnetic energy product of N35 NdFeB material is 270ka / m3.
Detailed parameters of N35 magnet；
Material grade: N35
Coating: conventional galvanized, nickel-plated, other coatings can also be made according to customer requirements.
Tolerance: ±0.05
Shape: round, annular, cylindrical, tile, special-shaped, etc.
Density: ≥7.5(g/cm3)
Magnetization method: circular rings are usually magnetized in axial, radial, square magnet thickness, length or width directions.
Curie temperature: 350 degrees
Working temperature: less than or equal to 80 degrees

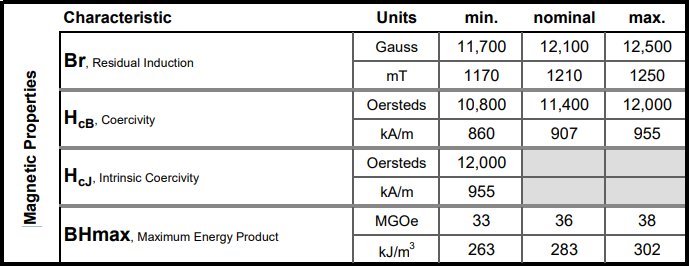

Magnetic properties of N35 magnets;

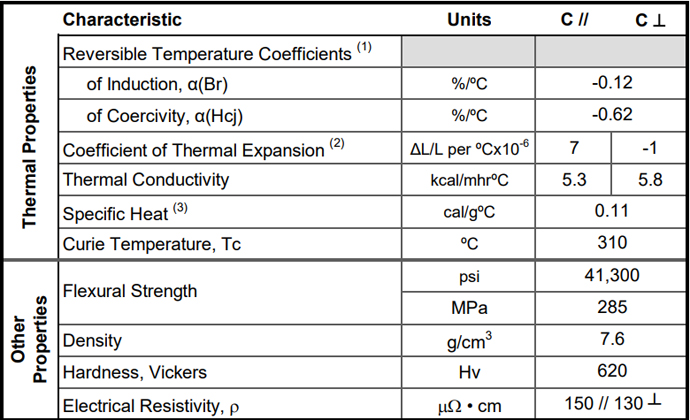

N35 magnet temperature characteristics and other characteristics;
N35 magnet demagnetization curve can not be less;
The above is the introduction of some characteristics of N35 magnets. If you have any questions or need to buy N35 neodymium magnets, you can contact us directly.
