N35 and N52 are both performance grades of rare earth neodymium magnets. What is the difference between them? How do I choose and distinguish? Today, Chinese magnet supplier Courage Xiaofu is here to talk about these topics that you are concerned about.


What's the difference between n35 and n52?

N35 and n52 are the two grades of neodymium iron boron, representing the difference in the magnetic properties of the two neodymium iron boron. The main difference between the two grades is the difference in remanence. The N35 remanence range is 1.17T-1.22T, and the N52 remanence range is 1.43T-1.48T. For NdFeB of the same size, the greater the remanence value, the stronger the magnetism, and the higher the price. It can be seen that NdFeB n35 is different from n52 in that N52 is more magnetic. However, the corresponding cost advantage of N35 is more accepted by the public and the demand is larger.

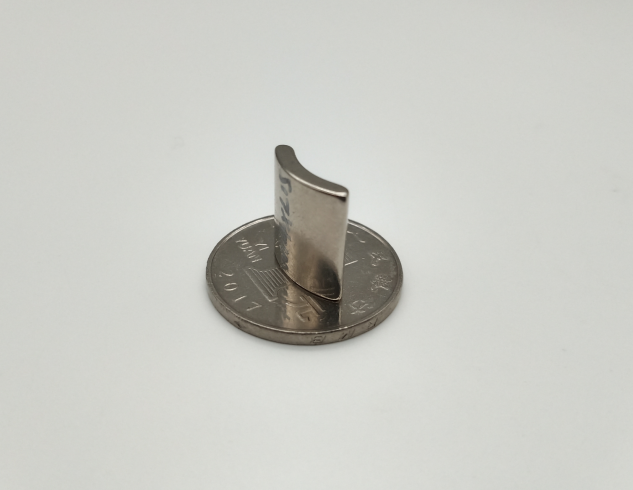

The image quoted below is an N52 curved neodymium magnet

N52 curved neodymium magnet


How can you tell if a neodymium magnet is N35 or N52?

From the appearance, you can't see it because they are the same, but you can use magnetic force, absorb things, or measure the meter's magnetic force and magnetic flux. The difference between the two is quite big.


If you want to customize magnets with the same performance as your existing samples in batches, you can send the samples to the supplier. They measure Gauss with their own Gauss meter, then judge the performance of the magnets through experience, and then customize the samples. Measure with the same Gauss meter, and compare the Gauss.


Our company is a professional permanent magnet manufacturer, for N52 neodymium magnets, Micro Tiny Magnets, ultra-thin rare earth magnets, radial magnetized ring magnets have a great price advantage, you may wish to send inquiries.
