We can provide the materials and specifications of these fan motor ring magnet

Addtime:2022-10-17 16:51:44 Click:541

In the fan motor, the magnet is also a very important part. It is mainly used for the rotor and is driven by the motor. When electricity is passed into the motor coil, a rotating magnetic field will be generated. The rotating magnetic field will cut the rotor conductor. The electromagnetic force generated by the rotor conductor and the electromagnetic force generated by the interaction of the rotating magnetic field drive the rotor to rotate in the rotating magnetic field. At present, the magnet materials used for the fan motor mainly include rubber magnet, ferrite and neodymium iron boron, Our company mainly supplies permanent magnets, such as injection molded ferrite magnetic rings, sintered ferrite magnetic tiles, bonded NdFeB magnetic rings, injection molded NdFeB magnetic rings, and magnetic tiles wrapped into a magnetic ring.


The following are several types of magnets commonly used for fan motors. Most of them are 10 pole internally charged, with strong inner circle magnetism and molds. You are welcome to ask for samples and prices, and support customization.


1、 More than 10 pieces of arc ferrite magnet are coated with plastic injection molding magnetic rings, and the outer diameter is about 110-160mm, Product Details: 2022 New fan motor rotor magnet 14 pole 110-160mm

Fan motor magnet sample


2、 Injection molded ferrite magnetic ring, such as 58x53x14, D59x53x14

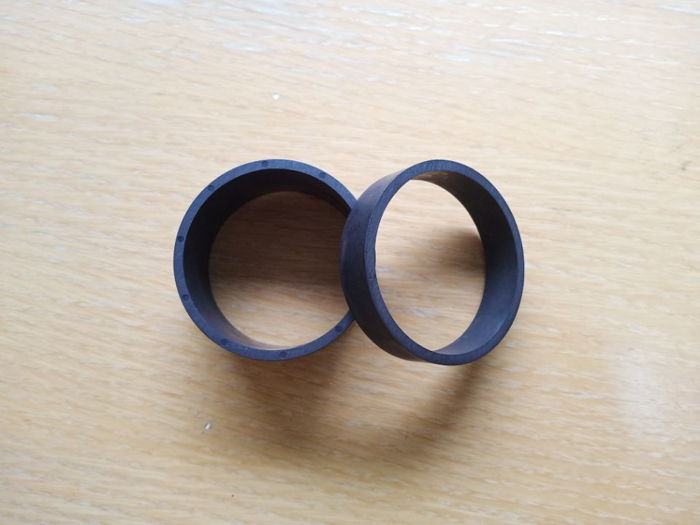

Injection molded ferrite magnetic ring sample


3、 Bonded NdFeB magnet ring, specification: 56x53x14/10mm

Fan bonded magnet sample


The above are some fan magnetic ring samples listed by Xiao Bian for you. Similar products also have 10 poles of injection molded NdFeB ring magnets. If you are interested in that kind, please contact the customer service website to quote for you and provide samples!

Tags: Fan magnet
