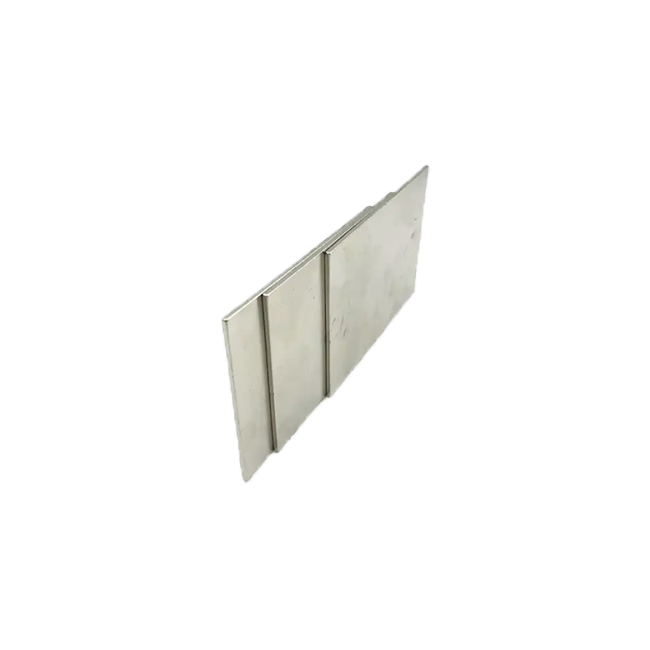

This is a large flat block magnet with a very thin thickness. The material is neodymium, a rare earth. Such thin magnets generally choose the thickness as the direction of magnetization, because ultra-thin magnets generally use the largest surface. Courage Magnet is very advantageous in the production of ultra-thin magnets, the thinest magnet can be 0.4mm. In addition, our multi-pole magnetic ring, ring or tile motor magnet, rotor also received a wide range of consumer praise. In addition to the common neodymium magnets, we can also produce a variety of ferrite magnets, samarium cobalt magnet, AlNiCo magnet.
If you need to punch holes in the magnet, you can customize the number and location.

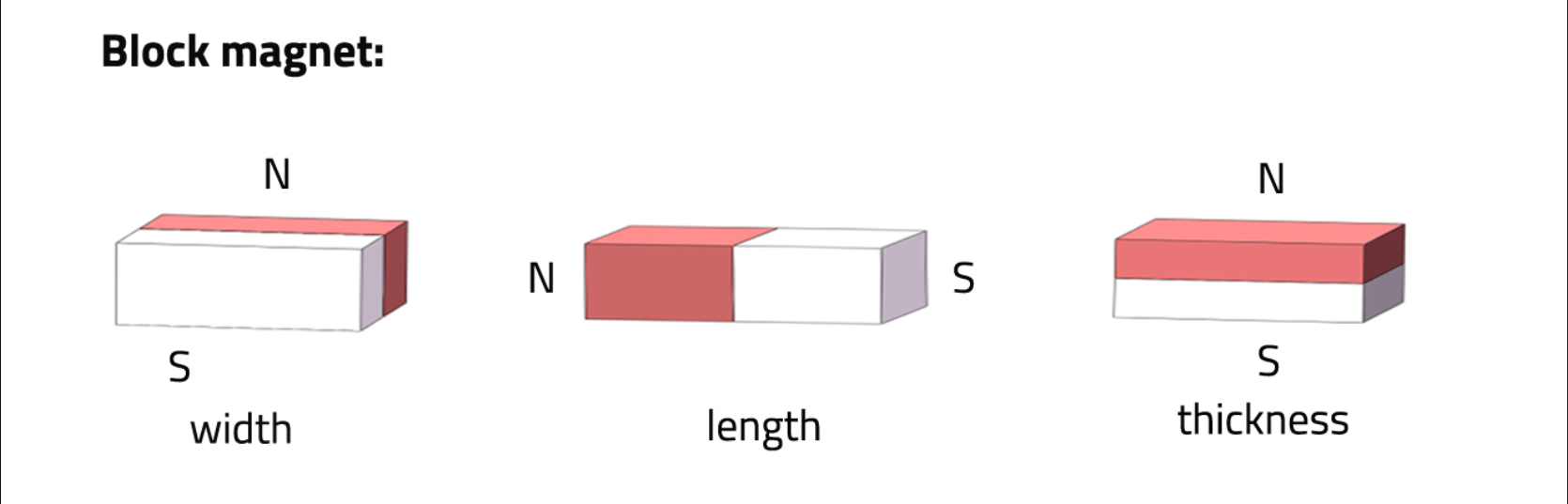

The direction of magnetization is shown in below image:
If you need other sizes of ferrite ring magnets, you can contact us directly, thank you.
