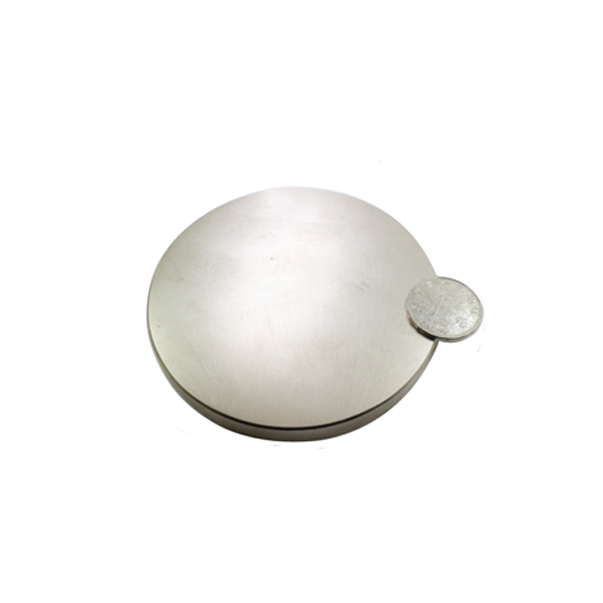

Product Name: High quality round disc neodymium magnet with diameter of 100mm
Specification: Diameter 100mm, thickness 10mm
Grade: N52
Tolerance: plus or minus 0.1mm
Direction of magnetization: thickness 10 mm
Surface coating: nickel copper nickel, choose zinc more
Application: Industry
Magnetic field strength: Higher than 4500 Gauss
pulling force: about 60kg
Origin: Mainland China
Supplier: Courage Magnet
Price: Make inquiries
Precautions: Be careful of fragile, careful of splint, dry and store at room temperature

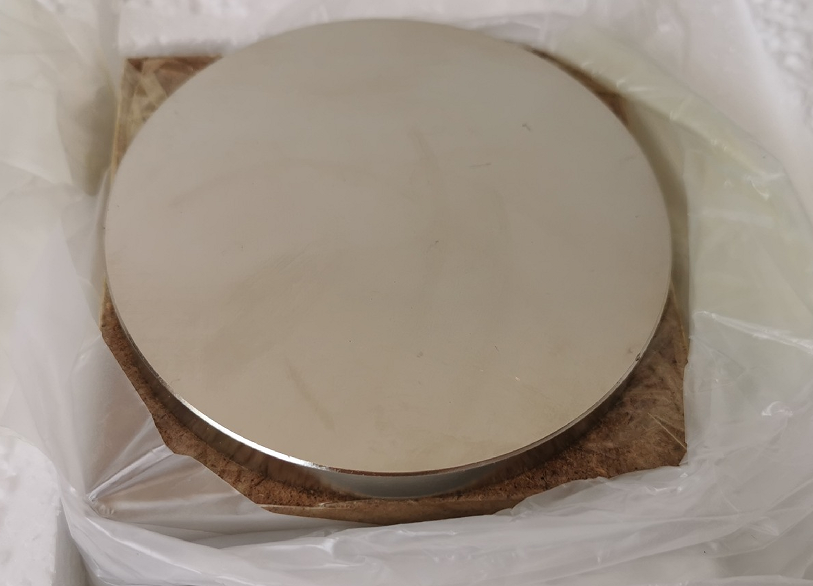

Physical sample of neodymium round super-strong magnet 100x10mm
