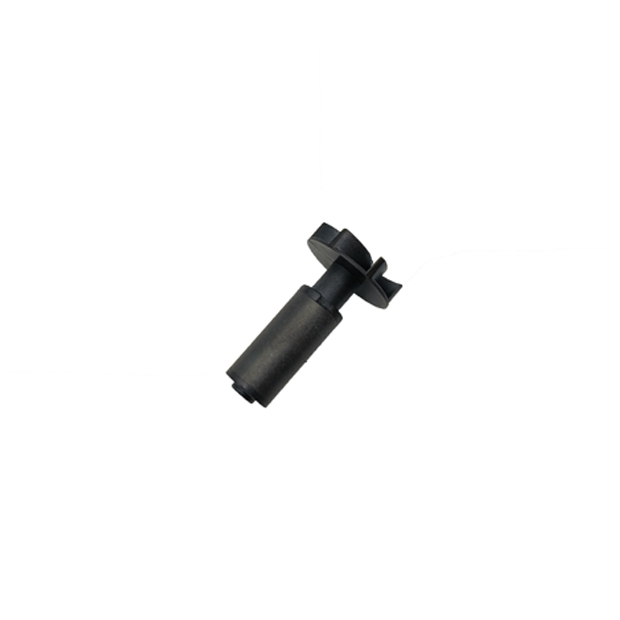

Our company is an excellent supplier of motor magnets in Chinese Mainland, and can provide you with high-quality Nd arc magnets, ceramic arc magnets, multipolar Nd ring magnets, radial multipolar ring ferrite magnets for permanent magnet DC motors. This product is sintered ferrite radial rotor magnets, 4-pole magnetization, mainly used for various pump motors. The magnet specification is 12.3mm outside diameter, 24.4mm height, and 43.6mm total height. There are too many similar specifications, If you need samples, please contact us for the latest price.

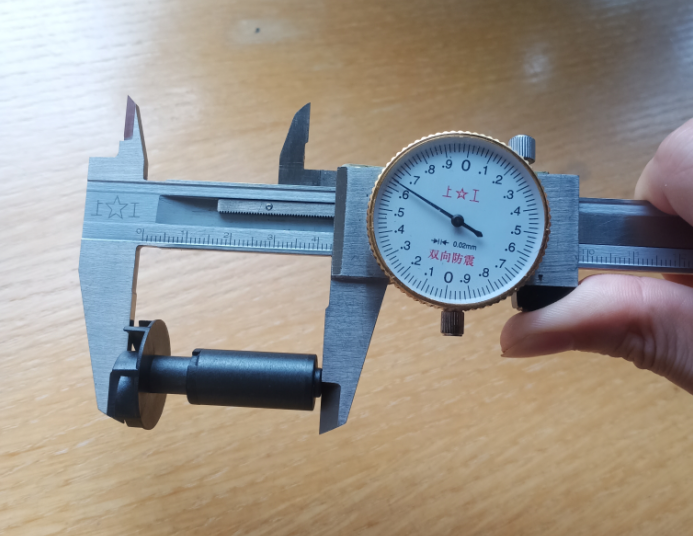

Sintered ferrite rotor magnet for pump total height dimension measurement;
We can provide you with separate magnets or injection molding integrated magnet rotors. If you are inquiring about such pump rotor magnets, please send us an inquiry and look forward to cooperating with you!
Size close to pump motor rotor magnet;
