The magnet is a multipolar Ndfeb magnetic ring, the material is bonded neodymium magnets, there are 12 magnetic poles, using the radial inner diameter magnetization, the use of surface for the inner side, the outer diameter of the ring magnet is 28mm, the inner diameter of 24mm, the height of 10mm, the surface black electrophoresis, the measured surface magnetic field intensity of about 2680 Gauss, mainly used in the field of DC motor.

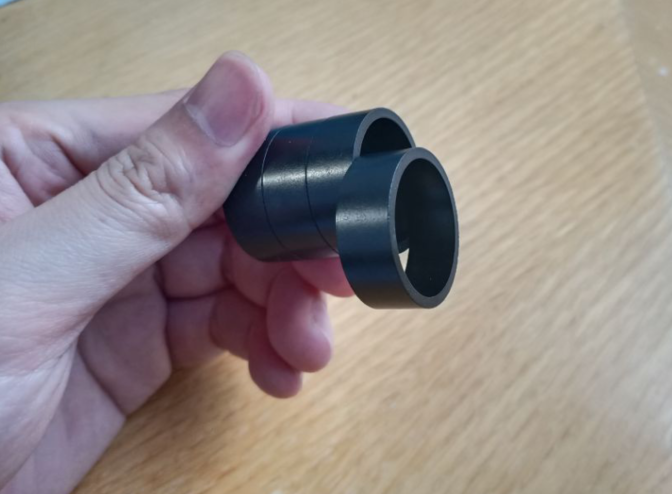

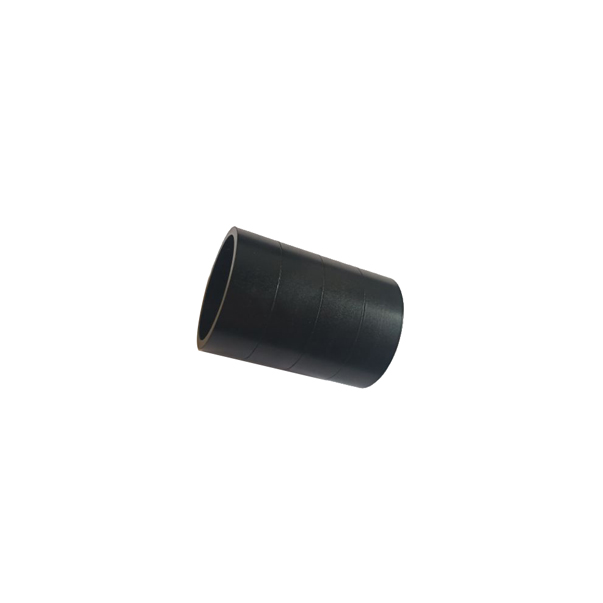

Multi-pole bonded neodymium magnetic ring D28x24x10mm physical pictures;

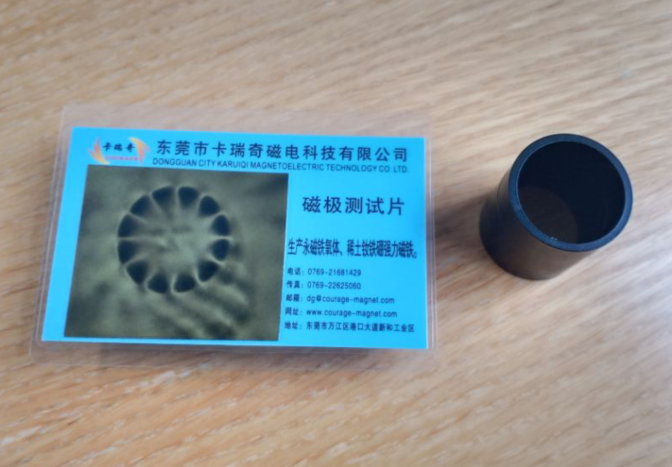

Motor radial multipole ring neodymium magnet 12 pole magnetizing pole distribution display
