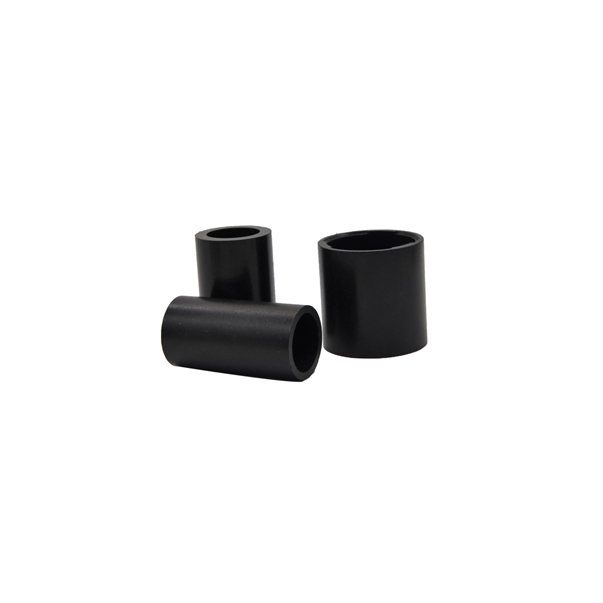

Multi-pole molded magnets magnetized magnetized through OD

This product is a multi-pole molded magnet magnetized by the outer diameter (Radial outer magnetization), the material is NdFeB, we call it a bonded Nd magnet, mainly used in motors, automation equipment, smart home appliances, sensors and other fields.
Products Inquiry

PRODUCT INFORMATION

This product is a multi-pole molded magnet magnetized by the outer diameter (Radial outer magnetization), the material is NdFeB, we call it a bonded Nd magnet, mainly used in motors, automation equipment, smart home appliances, sensors and other fields.


Composition of die bonded NdFeB magnet: ND: 28%, FE: 71%, B: 1%, epoxy resin: 2.5%, and other elements.


Features of radial molded bonded NdFeB magnets: much higher magnetic properties and higher corrosion resistance than injection bonded NdFeB magnets


Compared with sintered NdFeB, it has a more flexible magnetization method; it has precise dimensions, free forming, uniform magnetic properties, and easy mass production with good consistency.


The production process of die-bonded NdFeB magnets: ingredients—molding—curing and baking—surface coating—appearance inspection

One magnetized package one sale.


Schematic diagram of common magnetization of molded bonded neodymium magnets;

Schematic diagram of the magnetization of the molded bonded neodymium magnet;


Due to our focus on motor magnets, our company has accumulated a lot of bonded neodymium magnet molds. Welcome to send us the specifications you need for quotation and provide you with samples.
