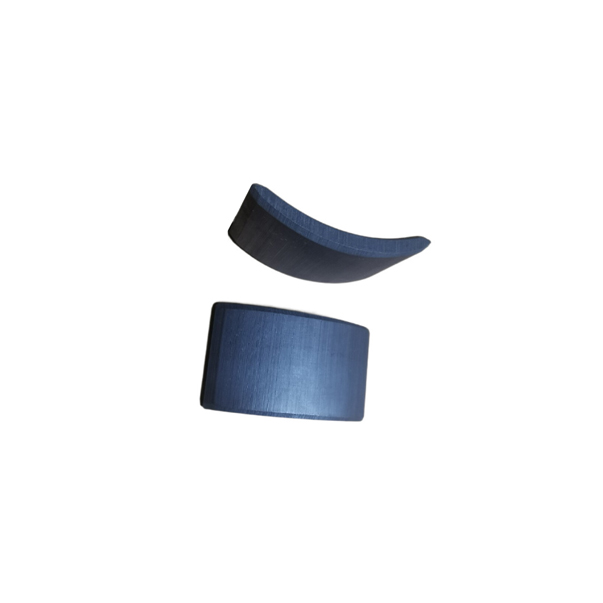

This product is a sintered ferrite arc magnet, which is a permanent permanent magnet with low price and good temperature resistance. It is widely used in car starter motors, wiper motors, engines, mount motors, egg beater motors, toy motors, etc., such as If you have custom requirements for purchasing sintered ferrite magnetic tiles, or you want to find ready-made ferrite magnetic tiles, please contact us for a quotation. Our company has many specifications and molds for ferrite magnetic tiles, so it is not necessarily what you have been looking for. We can find it here, one more consultation, one more quotation.
Magnetic performance parameters of arc ferrite;
| Grade | Isotropic/Anisotropic | Remanence | Coercivity | Intrinsic coercivity | Maximum energy product | ||||
| Br | Br | bHc | bHc | iHc | iHc | (BH) | (BH) | ||
| (mT) | (Gs) | (kA/m) | (Oe) | (kA/m) | (Oe) | max(KJ/m) | max(MGOe) | ||
| Y10 | Isotropic | 200-235 | 2,000-2,350 | 125-160 | 1,570-2,010 | 210-280 | 2,640-3,520 | 6.5-9.5 | 0.8-1.2 |
| Y25 | Anisotropic | 360-400 | 3,600-4,000 | 135-170 | 1,700-2,140 | 140-200 | 1,760-2,510 | 22.5-28.0 | 2.8-3.5 |
| Y30 | Anisotropic | 370-400 | 3,700-4,000 | 175-210 | 2,200-2,640 | 180-220 | 2,260-2,770 | 26.0-30.0 | 3.3-3.8 |
| Y30BH | Anisotropic | 380-400 | 3,800-4,000 | 230-275 | 2,890-3,460 | 235-290 | 2,950-3,650 | 27.0-32.5 | 3.4-4.1 |
| Y33 | Anisotropic | 410-430 | 4,100-4,300 | 220-250 | 2,770-3,140 | 225-255 | 2,830-3,210 | 31.5-35.0 | 4.0-4.4 |
| Y35 | Anisotropic | 400-420 | 4,000-4,200 | 160-190 | 2,010-2,380 | 165-195 | 2,070-2,450 | 30.0-33.5 | 3.8-4.2 |
