Does the size of the magnet affect the torque of the motor?

The size of magnetic steel (magnet) can affect the torque of a motor, but it is only one of the multiple factors that affect torque. The generation of torque in a motor is a complex process that is influenced by multiple factors, including magnetic field strength, winding design, current, and the relationship between the rotor and stator.

The size of the magnet directly affects the magnetic field strength of the motor. In general, the larger the magnetic steel, the stronger the magnetic field strength. A larger magnetic field strength can provide stronger magnetic force, thereby increasing the torque output of the motor. Therefore, it can be said that the size of the magnetic steel has a certain impact on the torque performance of the motor. However, it should also be noted that the torque performance of the motor depends not only on the size of the magnet, but also on other factors such as coil design, magnetic circuit structure, current, etc. There are complex interactions between these factors. Therefore, simply increasing the size of the magnet does not guarantee higher torque performance.

So when designing a motor, it is necessary to comprehensively consider various factors and make reasonable optimizations.

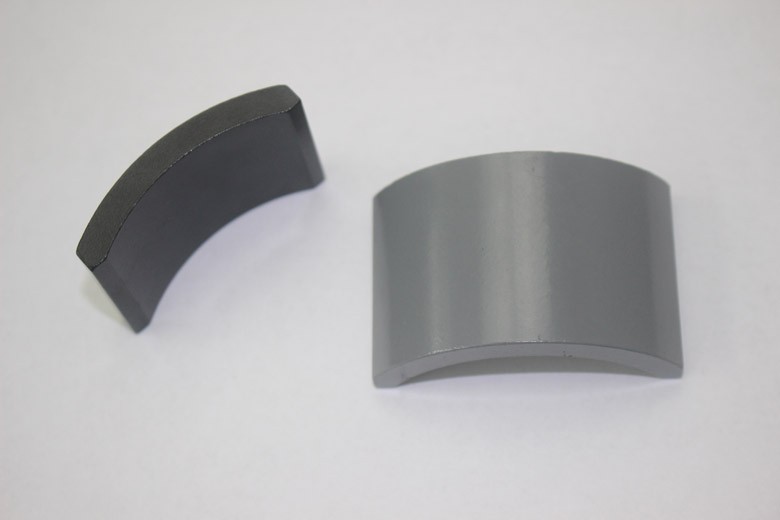

Bonded neodymium arc magnets for brushless motors

Here are some considerations related to magnet size:

1. Magnetic field strength: Larger magnetic steel usually provides a stronger magnetic field, which may increase the torque generation capacity of the motor. The strength of the magnetic field directly affects the performance of the motor.

2. Saturation: Magnetic steel materials will saturate after reaching a certain magnetic field strength, which means that further increasing the magnetic field strength will not produce linearly increasing torque. Therefore, when choosing the size of magnetic steel, it is necessary to consider the saturation characteristics of the magnetic steel.

3. Number of magnetic poles: The number of magnetic poles in a motor is closely related to the size and shape of the magnet, and more magnetic poles usually increase the torque of the motor.

4. Motor design: The design and winding layout of the motor also have an impact on torque, not only the size of the magnet, but also the design of the stator and rotor, which are crucial to the performance of the motor.

In short, the size of the magnet plays a crucial role in motor performance, but it is only one of the many factors that affect torque. The comprehensive consideration of motor design includes the size, shape, magnetic field strength, and coordination with other components of the magnet. Therefore, when designing or improving motors, it is necessary to comprehensively consider all these factors to achieve the required torque performance.
