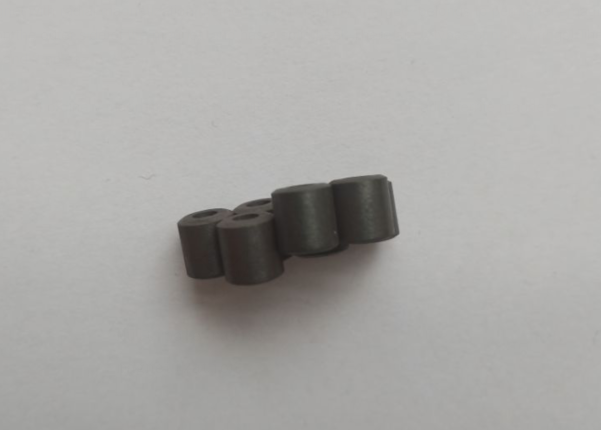

Radial ferrite magnet, a kind of ferrite magnet with radial magnetization method, mainly radially charged, belongs to permanent magnet type, has good high temperature resistance, the strong magnetic surface is on the outer side of the magnet, and has a solid heel. There are 2 types of hollow rings. The radial ferrite magnets currently on the market are basically ring-shaped, with 2, 4, and 8 poles. .

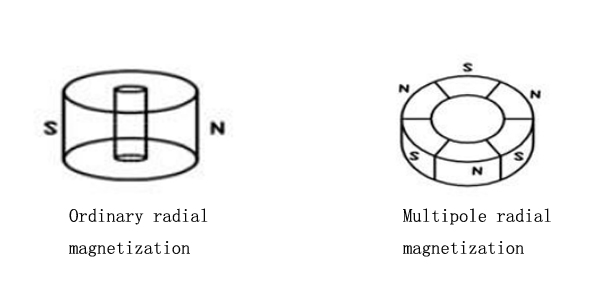

The figure below shows the schematic diagram of ordinary magnetization and multi-pole magnetization of radial ferrite magnets
What kinds of radial ferrite magnets are there?
The more radial ferrites used by customers are radial sintered ferrite isotropic, radial sintered ferrite anisotropy, injection molded ferrite magnetic ring, radial 4 poles, 6 poles, 8 poles are mostly, production Processing requires molds and magnetized fixtures.
Main purpose of radial ferrite;
Various water pumps, permanent magnet DC motors, sensors, encoders, induction devices.
The above are some introductions about radial ferrite magnets. Our company is a motor magnet manufacturer. If there are radial ferrite magnets and radial multi-pole ferrite magnets, a quotation is required. For samples, please contact the online customer service on the website.
