In multipolar magnetic rings, 4-pole magnetization is relatively common. This type of magnetic ring is often used in motor rotors, Hall sensors, and magnetic encoders. The magnetic field distribution diagram can visually display the magnetic field changes around the magnetic ring, which is of great interest to many people. Below is the magnetic field distribution diagram of a 4-pole magnetic ring.

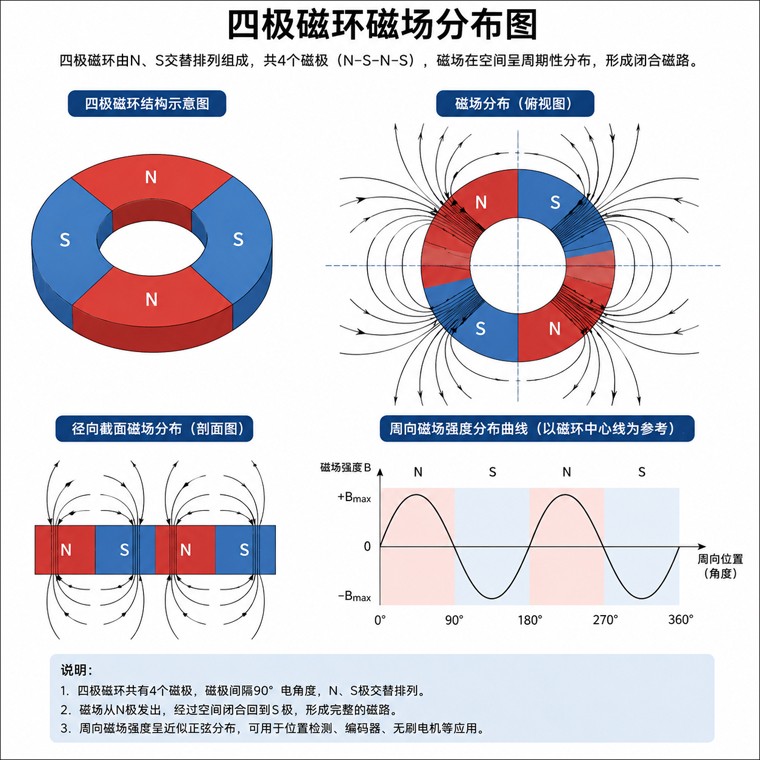

Magnetic field distribution diagram of a 4-pole magnetic ring, including schematic diagram of the magnetic ring structure, top view and cross-sectional view of magnetic field distribution, as well as magnetic field intensity distribution curve
Image of magnetic field distribution of a 4 pole magnetic ring
Recommendation for 4-pole magnetic ring;
4 pole bonded ndfeb ring rotor magnet 16 x 5 x 20 mm
4 pole ring Injection magnet for pushrod motors 22 x 7 x 4 mm
This 1mmx1mm miniature circular magnet has a compact size and a surface magnetic field of approximately 2900 Gauss, making it suitable for precision applications with high requirements for magnet size....
This product is a miniature round magnet, made of rare earth NdFeB magnets, belonging to the ultra-small size magnet series, using N35 grade, the specific size is 1.5mm diameter, 1mm thickness, axial magnetization, surface nickel coating, tolerance ±0.05, such as If you are interested in this small magnet product, you can contact us to customize it for you....
Customers from the United States, the United Kingdom, Australia, Japan, Poland and other customers are looking for ferrite cylindrical magnets. Welcome to contact the Courage magnet manufacturer. Our company is located in Dongguan, China. There are many ready-made sizes and low prices. Like the main picture...
The sample is a small-sized Y35 ferrite magnetic block with a specification of 3 × 1.3 × 4mm, magnetized along the length direction, and a surface magnetic field of about 1300 Gauss....
This is a very small rectangular ferrite block magnet, measuring 2.45 mm in length and 1 mm in both width and height. It is magnetised along its length and is barely noticeable when held in the hand....
7.4x6x5mm Ferrite Small Block Magnet Introduction，Material: Hard Ferrite (Ceramic)，Shape: Block / Rectangle / Bar，Coating: No Coating，Grade (Chinese Stardard): Y30，Operating temperature: -40°C to 250°C，Delivery time: 7-15 days，Magnetization direction: thickness....
U-shaped neodymium magnets are a type of high-performance permanent magnet material with a structure resembling the letter ‘U’. Manufactured from sintered neodymium-iron-boron, they are characterised by high magnetic energy product....
This is a radial 4-pole ring (Hollow cylinder) magnet, the material is bonded NdFeB, with high magnetic performance, the size is 16mm outer diameter, inner hole 5mm, height 20mm, surface gray epoxy treatment, suitable for water pump motor...
