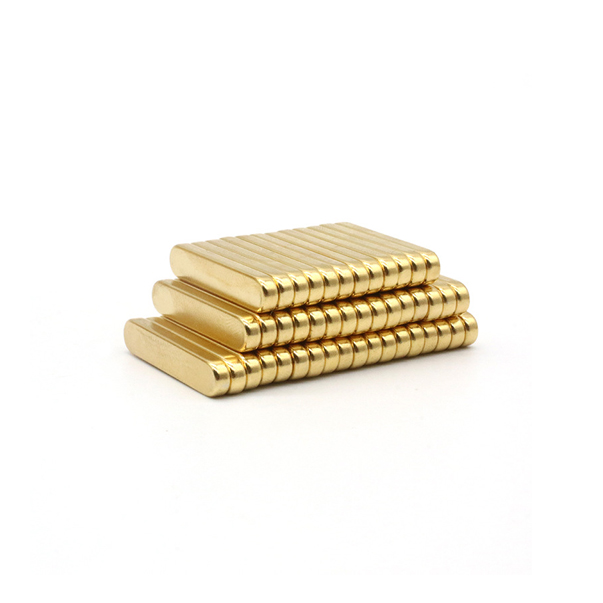

Magnet name: Rectangular rounded magnet, Rectangular rounded corners magnet
Manufacturer: Courage Magnets in China
Size: Length 25mm, Width 5mm, Thickness 2.5mm
Grade: N38
Plating: Gold
Magnetizing Direction: Thickness
Working temperature: ≤80℃
Price: Please email for inquiries

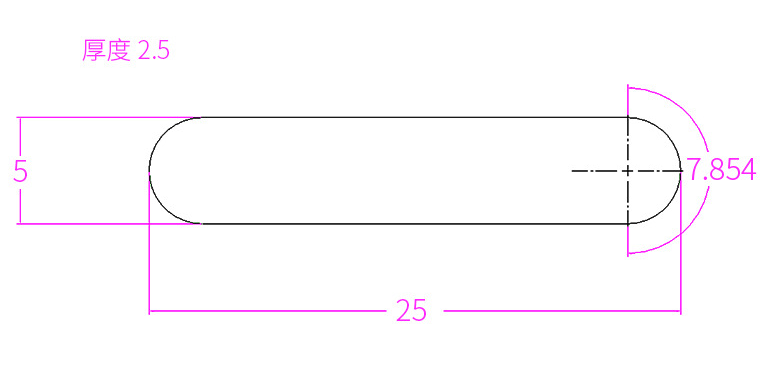

The following figure is a schematic diagram of the rectangular rounded corners magnet size;
If you have a similar runway magnet, runway ring magnet, please contact our company to quote for you.
Special custom shaped magnets: https://www.dgcourage.com/chanpin/special-shaped-magnet/
