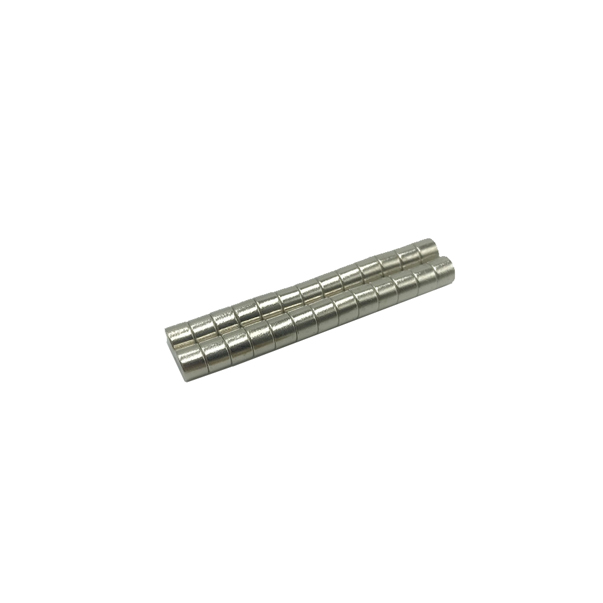

N35 Grade D5x4 disc magnet specification;
Appearance: silver white
Material: N35
Remanence Br: 1.197T 11.97KGs
Coercivity Hcb: 918.2 kA/m 11.54kOe
Intrinsic coercivity Hcj: 1097 kA/m 13.78kOe
Maximum magnetic energy product (BH) max: 34.67MGOe
Tolerance: ±0.05mm
Magnetization direction: Axial magnetization
Surface Magnetic Field: 4000GS
Pulling force: 0.13kg
Working temperature: maximum working temperature 80℃
Weight: 0.6g
5mm diameter, 4mm thick neodymium round magnets are widely used. If magnetic strength feels insufficient, consider upgrading to higher performance grades like N38 or N42. For high-temperature applications, select magnets with high coercivity ratings. Contact us for a quote!
