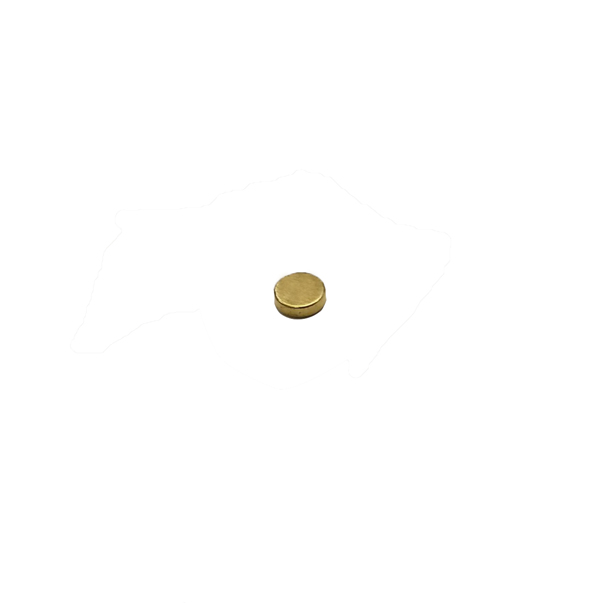

N35 D5*1 round thin magnet product specification;
Appearance: Gold
Material: Sintered NdFeB
Remanence Br: 1.197T 11.97KGs
Coercivity Hcb: 918.2 kA/m 11.54kOe
Intrinsic coercivity Hcj: 1097 kA/m 13.78kOe
Maximum magnetic energy product (BH) max: 34.67MGOe
Size: Diameter 5mm, Thickness 1mm
Tolerance: plus or minus 0.05mm
Magnetization direction: Axial magnetization
Surface Magnetic Field: 1980GS
Pulling force: 0.04kg
Working temperature: less than or equal to 80℃
Single weight: 0.15g
Uses: packaging, toys, crafts, electronic products, etc.
Our company is a magnet manufacturer, and the specifications cannot all be put on the shelves. If you do not find the size that you are satisfied with on the website, you can contact customer service and customize!
