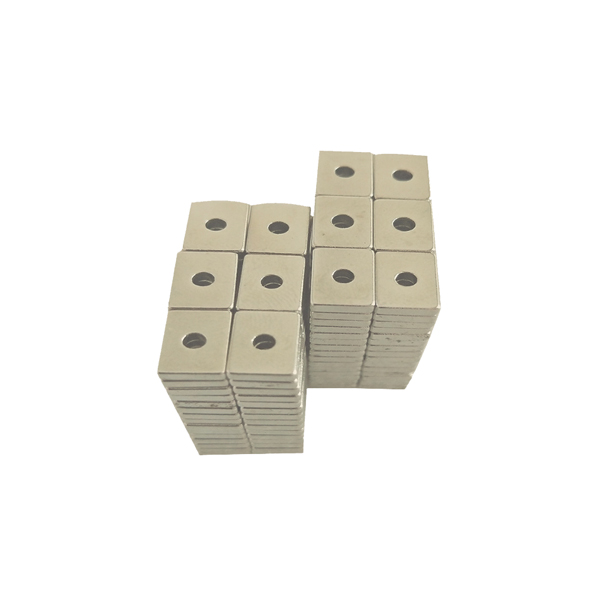

Square strong magnet with a through hole 20x20x5MM

This is a square rare earth neodymium magnet with a through hole (straight hole), N35 grade, the size of the magnet is 20mm long, 20mm wide, and 5mm thick, the magnetization method is thickness magnetization, and the surface has three layers of nickel, copper and nickel for good protection. Magnets, make life longer, suitable for industry.
Products Inquiry

PRODUCT INFORMATION

This is a square rare earth neodymium magnet with a through hole (straight hole), N35 grade, the size of the magnet is 20mm long, 20mm wide, and 5mm thick, the magnetization method is thickness magnetization, and the surface has three layers of nickel, copper and nickel for good protection. Magnets, make life longer, suitable for industry.


We accept magnet customized services:

1) Shape and Dimension Requirement

2) Material and coating requirements

3) Processing according to design drawings

4) Requirements for Magnetization Direction

5) Magnet Grade Requirements

6) Surface treatment requirements (plating requirements)


Welcome to provide drawings or dimensions for inquiry and production samples.
