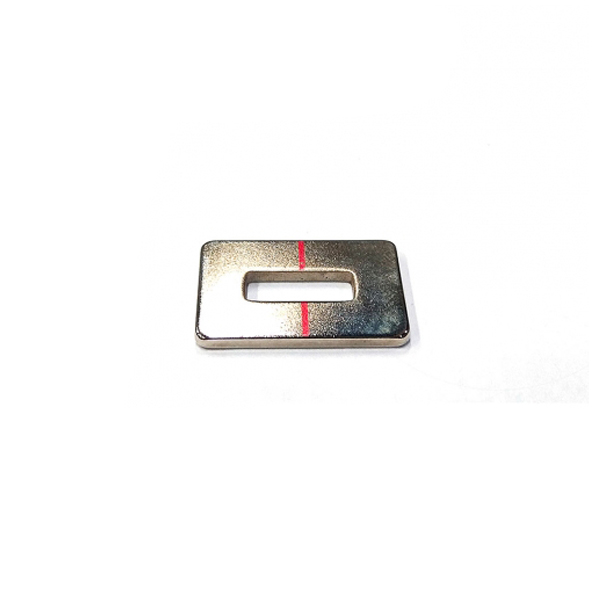

This is a relatively uncommon magnet with a hole in the middle, because its hole is not a circle, but a rectangle, the length is 25.2mm x width 17mm x thickness 2mm, the length of the middle hole is L13.2 x width 5mm, and the surface magnetic field strength is around 1900gs , our company has more magnet specifications and shapes that are not online, if you need or special customization, please send us an inquiry.

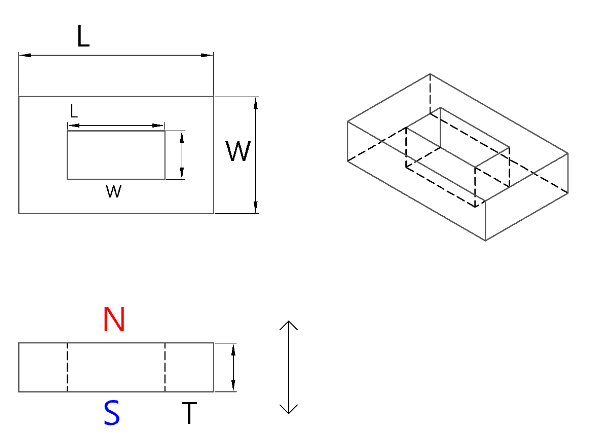

Rectangular magnet with rectangular hole in the middle drawing
Similar to special perforated magnets;
Square convex strong neodymium magnet with hole
See more rectangular Magnets with holes: https://www.dgcourage.com/zhuanti/countersunk-rectangular-magnets/
