N52 grade D3*2 magnet specification;

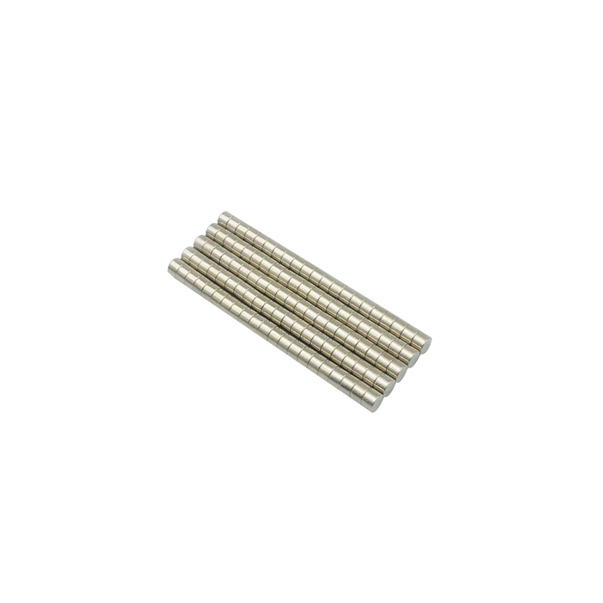

Appearance: refer to the main picture of the product
Material: NdFeB N52
Remanence Br: 1.45T 14.5KGs
Coercivity Hcb: 988.3 kA/m 12.42kOe
Intrinsic coercivity Hcj: 996.6 kA/m 12.52kOe
Maximum magnetic energy product (BH) max: 50.31MGOe
Plating: Nickel Copper Nickel
Magnetization direction: Axial magnetization
Vertical pull: 0.45kg
Operating temperature: maximum operating temperature 80°C/176°F
Single weight: 0.1g
Our company is a magnet manufacturer in China. The main advantages are high precision and high requirements. We welcome customers from the United States, Britain, Germany, Japan, Turkey, Canada, Italy and other countries who have high requirements on magnets to consult and cooperate!
