Neodymium Radial Magnetized Ring Magnets [application Schematic]

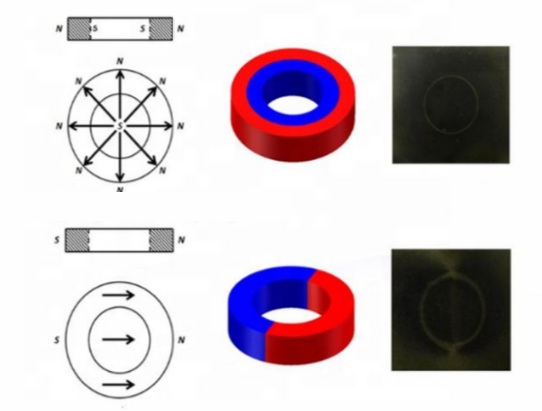

Regarding the radial magnetization of magnets, many people do not know much about the contact with them, so they do not have a strong concept of radial magnetization. Radial magnetic ring magnetization is actually diametrical magnetization, and their strong magnetic surface is on the side of the ring. , such as ring magnets, cylindrical magnets, circular magnets, and tile magnets, these magnets will have radial magnetization requirements. Today, I will briefly introduce the use of neodymium radially magnetized ring magnets and the magnetization schematic diagram.

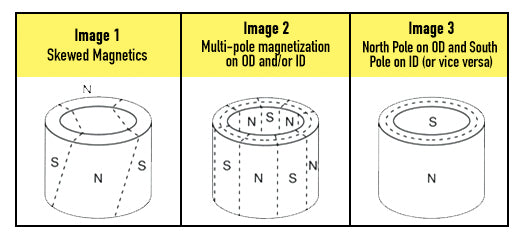

Several common magnetization diagrams of radial NdFeB ring magnets;

From left to right are the inclined magnetization of the neodymium magnet, the multi-pole magnetization on the outer and/or inner diameter, and the single-pole magnetization on the inner and outer diameters.

Radial neodymium ring magnet application;

Magnets with tilted magnetization, mainly used in servo and power steering motors.

Magnets with multi-pole magnetization on the outer and/or inner diameter can be found in servo motors, spindle motors, generators, couplings and stepper motors.

Magnets with unipolar inner and outer diameters can be used in linear actuators, compressors, magnetic bearings and high-end speakers.

The above is the whole content of this article. Customers who need to quote neodymium radial ring magnets and radial multi-pole ring neodymium magnets are welcome to contact us.
