Magnetization Direction of Bonded Neodymium Magnets

Addtime:2025-03-03 09:28:04 Click:1076

Today, I saw a friend search for the magnetization methods of bonded NdFeB? There must be friends who want to know more about it, so I will share it with you below.


The magnetization methods of bonded NdFeB magnets mainly include: axial magnetization, radial magnetization, outer diameter magnetization, inner diameter magnetization, oblique angle magnetization, plane magnetization, radiation magnetization, etc. Very Lord.


Regarding axial magnetization, radial magnetization has been mentioned many times before. I won’t talk about it here. The magnetization of the radiation magnetic ring means that the inner circle is all S, and the outer circle is N. The following mainly talks about the lower viscosity. The outer diameter surface of the junction NdFeB is magnetized, the inner diameter surface is magnetized, the oblique angle is magnetized, and the plane is magnetized.


Multi-pole magnetization of outer diameter surface (picture)

Multi-pole magnetization of outer diameter surface

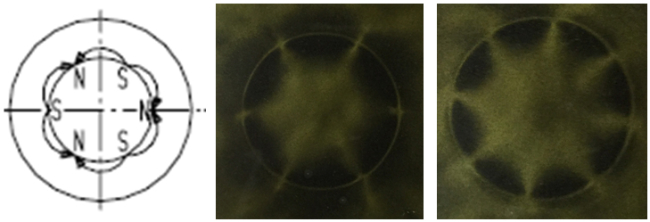

Multi-pole magnetization of inner diameter surface (picture)

Multi-pole magnetization of inner diameter surface

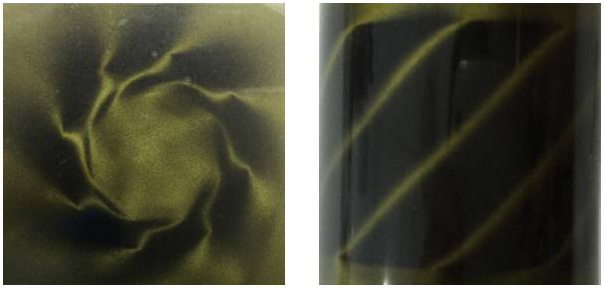

Bonded magnetic ring oblique charging, oblique angle magnetization

oblique angle magnetization

The above is about the magnetization method of bonded NdFeB. If you have any questions, please contact courage magent.
