The speed sensor magnet plays a crucial role in measuring vehicle speed. By working in conjunction with a Hall effect sensor or a magneto-resistive sensor, it utilizes magnetic field changes to generate signals, which in turn reflect the vehicle's speed. Today, we will introduce several key points about the speed sensor magnet.
Firstly, regarding the material of the magnet, the magnets used in speed sensors are typically made of materials such as neodymium iron boron (NdFeB) or ferrite. NdFeB magnets are widely used in speed sensors due to their high magnetic energy product and strong magnetic field output, providing a strong magnetic field to ensure accurate sensor response. Ferrite magnets are suitable for cost-sensitive applications, and although their magnetic force is not as strong as NdFeB, they are still widely used in some low-cost systems.

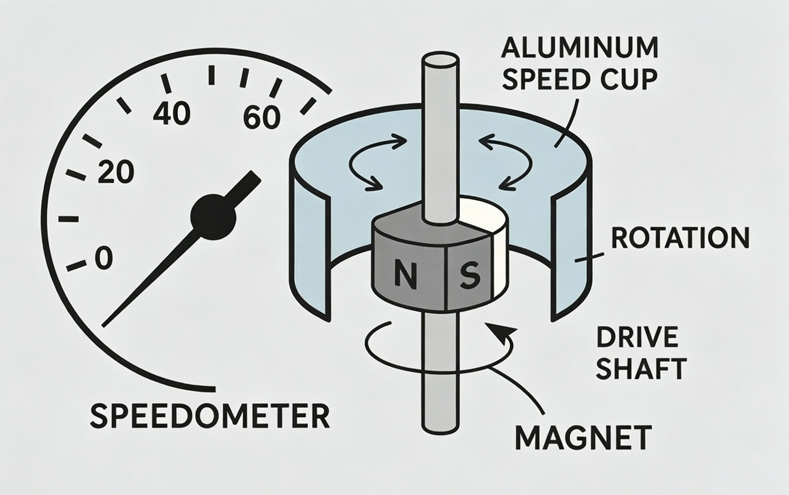

Working principle of speedometer magnet
Regarding the shape of magnets, the shapes of magnets for speed sensors mainly include circular, cylindrical, and toroidal. Circular (sheet-like) magnets are typically used for mounting on the surface of wheel hubs or turntables, offering simple installation and low cost, and are suitable for single-point triggering speed measurement structures. Cylindrical magnets are often used for embedded installation in rotating shafts or gears, capable of forming stable point-like magnetic field changes during rotation, and are commonly seen in designs where space is limited or high concentricity is required. Toroidal magnets are primarily used for encoder-type speed detection, forming continuous magnetic signals through multi-pole magnetization (such as alternating N/S poles), achieving higher resolution speed detection compared to single magnets.
In terms of magnet size and magnetic field strength, the size of the magnet directly affects its magnetic field strength and the response capability of the speed sensor. A larger magnet generates a stronger magnetic field, thereby enhancing the sensitivity and accuracy of the sensor. However, an excessively large magnet may lead to limited installation space and increased costs, so it needs to be selected according to the requirements of practical applications.
In addition, the speed sensor magnet typically operates in complex environments such as vibration, high temperature, and humidity, thus it needs to possess good temperature resistance, demagnetization resistance, and surface protection properties (such as epoxy coating). Only through comprehensive optimization of materials, structure, and process can the long-term stable operation of the speed sensor be ensured.
If you have a demand for magnets for speed measurement applications, please provide us with relevant magnet information for quotation and a sample that is similar to the product.
