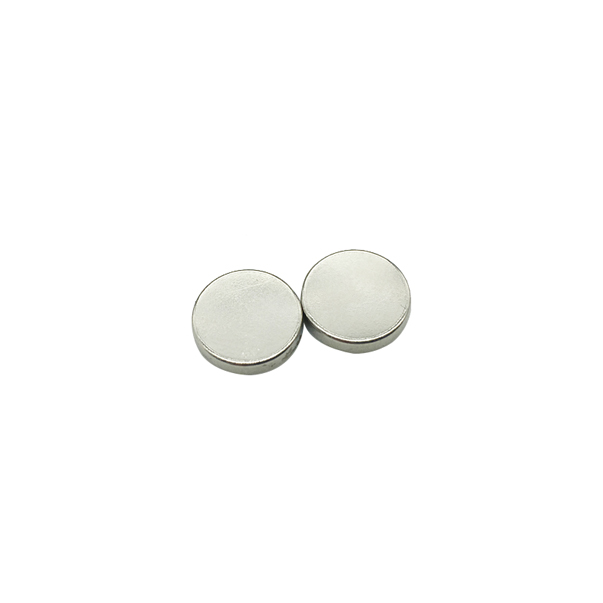

Circular neodymium magnet magnetization way besides the thickness direction, can also be radial magnetization, strong radial magnetizing magnet magnetic surface in the side, adsorption methods such as product pictures, you can according to their own needs to choose the right size, magnetic level, plating, etc., there is need to purchase this circular magnet magnetization can contact our quotation for you.
Schematic diagram of magnetization of radial magnetization circular magnet；
Related diameter magnetized neodymium magnet；
N35SH radial Nd cylindrical magnet 9mm x 10mm
Diametrically magnetized disc magnets N45 12.7mm x 3mm
