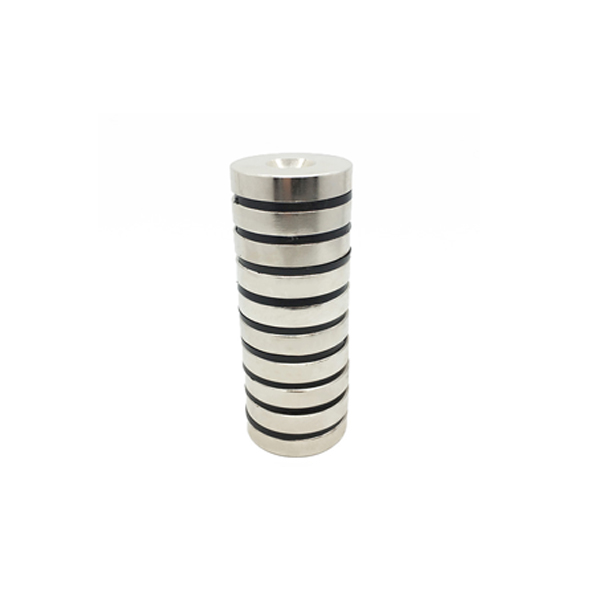

Introduction of super ring shaped counterbore magnet;
Neodymium iron boron countersunk magnet is a relatively new shape, which expands the application scope of neodymium iron boron magnet. We can use screws to permanently fix the countersunk magnet on wood, plastic or iron plate and other materials.
The countersunk hole of the countersunk magnet can be in the N-pole or S-pole, and can be used together with the countersunk screws such as M4, M5, M6 and M8. No matter the countersunk hole is in the N-pole or S-pole, the countersunk magnet can be used to attract or repel each other. In other words, when you use two countersunk magnets, the countersunk surface can attract or repel each other.
We are ready to customize the countersunk magnet you need at any time. You are welcome to contact us.

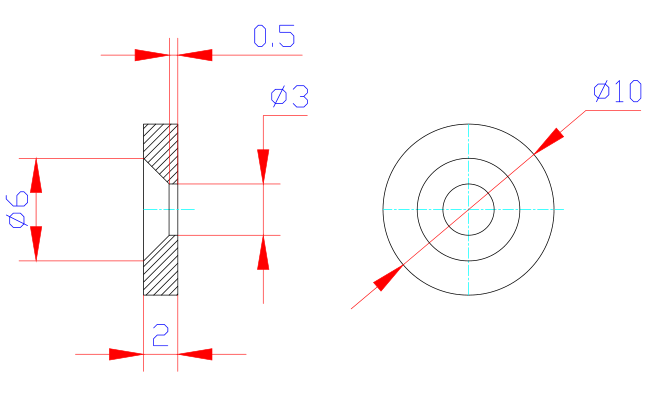

Schematic diagram of ring-shaped counterbore magnet specifications
