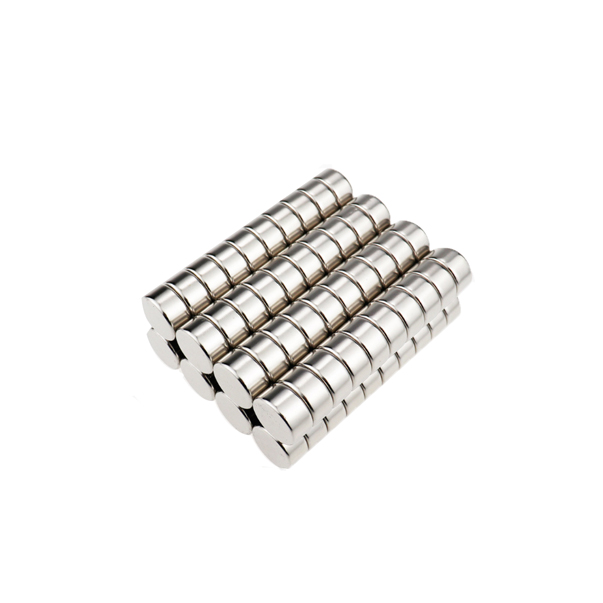

N42 D20*12 Round Neodymium Magnet Product Specification
Appearance silver white
Material N42
Remanence Br 1.326T 13.26KGs
Coercivity Hcb 983.5 kA/m 12.92kOe
Intrinsic coercivity Hcj 1028 kA/m 12.92kOe
Maximum energy product (BH) max 40.89MGOe
Size D20mm*12mm
Tolerance plus or minus 0.05mm
Plating Nickel Copper Nickel
Magnetization direction Axial magnetization
Surface Magnetic Field 4700GS
Pulling force 8.59kg
Working temperature The maximum working temperature is 80℃
Single weight 28.65g
