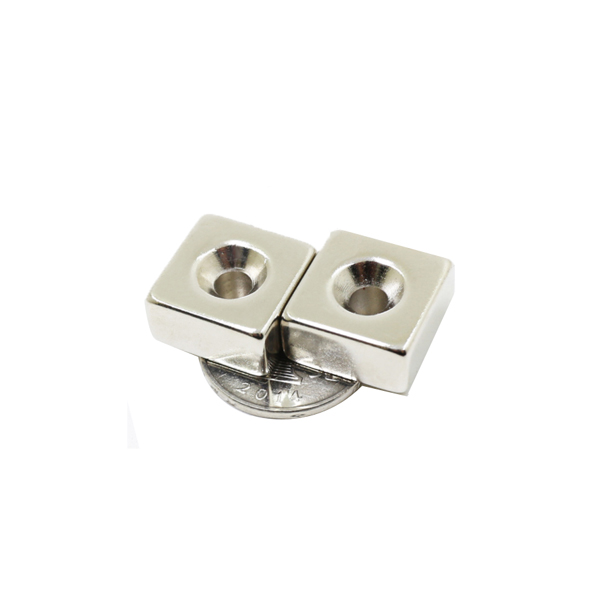

Product Name: 10mm thick square countersunk neodymium magnet
Magnet material: sintered NdFeb
Magnet Type: Rare earth permanent magnet square with hole
Size: Length width 20mm, thickness 10mm
Magnetization direction: thickness of 10mm
Surface treatment: nickel copper nickel
Salt spray duration: 48 hours
Operating temperature: 80-200 degrees Celsius is optional
Application: Industry
Delivery time: 10-20 days
Founded in 2009, we are a domestic manufacturer of neodymium magnets in China. Our main customers are middle and high-end, such as motor, sensor, instrument, automation equipment, optical and optoelectronic fields, etc. We produce neodymium magnets of various grades with reliable quality, which is more advantageous for the processing of high performance and difficult magnets.
20x20x10mm square countersunk neodymium magnet drawing reference, specifications can be customized, no mold fees
