This product is a large-size flat square magnet, which is made of sintered Nd-Fe-B, grade N35. The size is 100mm in length and width, 10mm in thickness, and magnetized in the thickness direction. Due to the large specification of the magnet and strong suction, special care should be taken when using it.

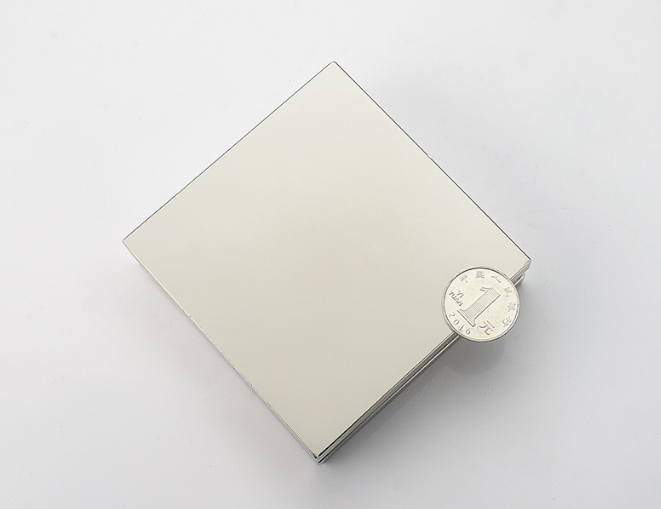

100mm x 100mm x 10mm neodymium magnet sample image
Neodymium strong magnets can be widely used in motors, engines, voice coil motors, magnetic resonance imagers, communications, control instruments, audio equipment, electronic appliances, hardware machinery, tools, motors, new energy motors, machining, electroacoustics, wind power Generators, permanent magnet motors, automotive motors, sensors, instruments, medical equipment and other high-tech fields,
Our company has been engaged in magnets for many years. The magnet products have stable performance, strong magnetism, and no demagnetization. Various high-performance products can be customized, and the products are cost-effective. Looking forward to your consultation.
