These Square magnets are 6mm long, 6mm wide, and 2.5mm thick, Thickness direction magnetization, They are composed of grade N38 neodymium iron boron magnetic material and are plated in nickel-copper-nickel for a shiny corrosion resistant finish.
When purchasing（Buy） NdFeB square magnet, the manufacturer can accurately customize it by giving specific size and performance data. Its size refers to length (L) × Width (W) × High (H) is generally indicated by the manufacturer starting with F. For example: F10 × six × 4mm refers to its length of 10mm, width of 6mm and thickness (height) of 4mm. Generally, the last number indicates the magnetization direction of the magnet by default. For example: F8 × four × For 2mm NdFeB square magnet, the magnetization direction is the direction of 2, that is, the thickness (height) direction. The N S pole is on two large surfaces, that is, 8 × On the 4mm surface, one side is N pole and the other side is S pole.

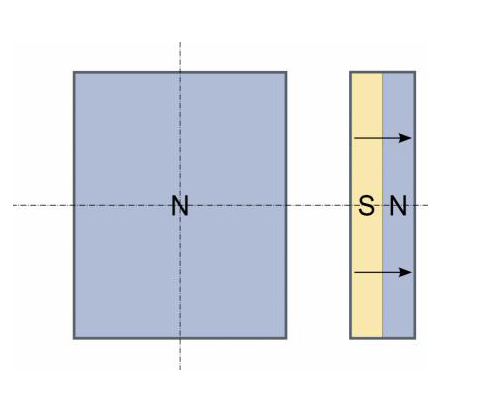

Magnetization direction of square neodymium magnet
Note: our company is a magnet manufacturer in China, with high cost performance. It supports the customization of magnet size, performance and temperature resistance. We look forward to cooperating with you.
